MITSUBISHI GT1695M-XTBA New and Original High quality

GT1695M-XTBA

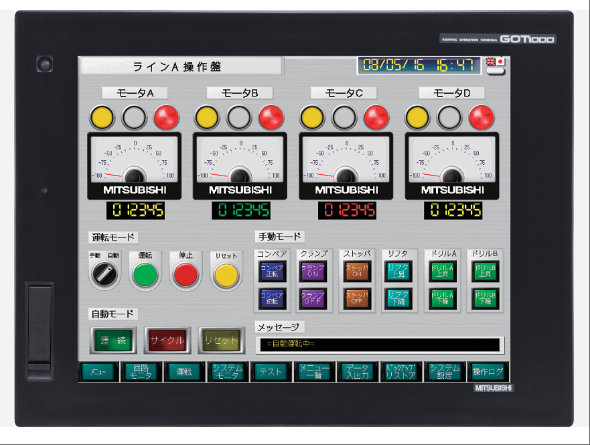

The GT1695M-XTBA model is a 15 inch high-performance human-machine interface (HMI) product designed specifically for the industrial automation field. It adopts a TFT color LCD display screen with a resolution of up to 1024 × 768 pixels and a display size of 304.1 × 228.1mm, which can present 65536 vivid colors. It has high brightness and wide viewing angle characteristics, ensuring clear and realistic visual effects even in complex lighting environments. The product is equipped with an analog resistive touch panel, which is responsive and durable, with a service life of over 1 million operations, suitable for high-frequency human-computer interaction scenarios. This model supports a wide voltage input of 100-240VAC, with a power consumption of 64W and an IP67 protection level. It can effectively resist dust and water splashes and adapt to a wide temperature working environment from -20 ℃ to 55 ℃, especially suitable for complex industrial environments. It has a built-in 15MB user storage space and integrates Ethernet, RS-422/485, and RS-232 interfaces. It is compatible with mainstream industrial communication protocols such as CC Link and Modbus, and can seamlessly connect with devices such as PLCs and frequency converters to achieve multi protocol collaborative control. In addition, the product supports multimedia video and RGB signal input, meeting the needs of device status visualization and data monitoring. With its compact structure, high reliability, and scalability, GT1695M-XTBA is widely used in fields such as mechanical manufacturing, packaging, and logistics, providing efficient and stable human-machine interaction solutions for industrial automation systems.

Technical specifcations for GT1695M-XTBA

Display parameters

Screen size: 15 inches.

Resolution: 1024 × 768 pixels (XGA).

Display type: TFT color LCD screen, with high brightness and wide viewing angle characteristics.

Display color: 65536 colors.

LCD monomer brightness: 450cd/m ².

Perspective: 75 degrees left and right, 50 degrees up, and 60 degrees down.

Display size: 304.1 (W) × 228.1 (H) mm.

Service life: 52000 hours.

2、 Storage parameters

User memory capacity: 15MB (expandable to 57MB).

Memory type: Built in flash memory, used to store project data and operating system.

Memory lifespan (number of writes): 100000 times.

3、 Interface parameters

Built in interfaces: Ethernet RS-422/485、RS-232。

Interface function: Can simultaneously connect 4 types of FA devices, supporting multimedia and video/RGB units.

USB interface: includes USB host and device ports.

4、 Touch screen parameters

Touch type: Analog resistive touch screen.

Service life: Over 1 million cycles (operating force less than 0.98N).

5、 Power parameters

Input power supply voltage: 100-240VAC.

Input frequency: 50-60Hz.

Power consumption: 64W.

Applicable wire size: 0.75-2mm ².

6、 Environmental parameters

Working environment temperature: Display screen 0 ℃ -50 ℃, outside the display screen 0 ℃ -55 ℃.

Storage environment temperature: -20 ℃ -60 ℃.

Working environment humidity and storage environment humidity: 10-90% RH, no frost.

Usage height: below 2000m.

Protection level: IP67.

7、 Physical parameters

Dimensions: 397 (W) × 296 (H) × 61 (D) mm.

Panel opening size: 283.5 (W) × 282.5 (H) mm.

Weight: 5kg.
