GT1685M-STBD

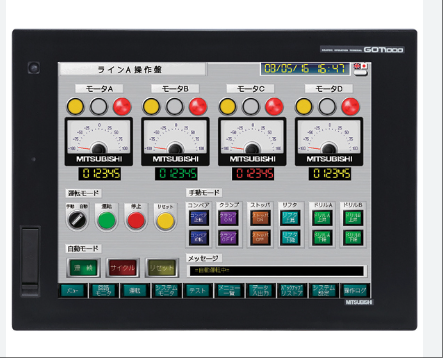

The GT1685M-STBD model is a 12.1-inch high-performance human-machine interface (HMI) product designed specifically for industrial automation scenarios. It adopts a high brightness, wide viewing angle TFT color LCD display screen with a resolution of 800 × 600 pixels, which can present 65536 vivid colors, ensuring clear and realistic visual effects even in complex lighting environments. The product is equipped with an analog resistive touch panel, which is responsive and durable, with a service life of over 1 million operations, suitable for high-frequency human-computer interaction scenarios. This model supports DC24V power input and has an IP67 protection level, which can effectively resist dust and water splashes. It is suitable for wide temperature working environments ranging from -20 ℃ to 60 ℃, especially for complex industrial environments. It has a built-in 15MB user storage space (expandable to 57MB) and integrates Ethernet, RS-232, RS-422/485, and USB interfaces. It is compatible with mainstream industrial communication protocols such as CC Link and Modbus, and can seamlessly connect with devices such as PLCs and frequency converters to achieve multi protocol collaborative control. In addition, the product supports multimedia video and RGB signal input, meeting the needs of device status visualization and data monitoring. With its compact structure, high reliability, and scalability, GT1685M-STBD is widely used in fields such as mechanical manufacturing, packaging, logistics, and commercial charging stations, providing efficient and stable human-machine interaction solutions for industrial automation systems.

Technical specifcations for GT1685M-STBD

Display parameters

Screen size: 12.1 inches.

Resolution: 800 × 600 (SVGA), with high display accuracy and clear image.

Display type: Adopting high brightness and wide viewing angle TFT color LCD display screen, with rich colors and wide viewing angle, 80 degrees left and right, 60 degrees up and 80 degrees down, making it convenient to view screen content from different angles.

Display color: 65536 colors, with natural color transitions that can present delicate visual effects.

LCD brightness: 470cd/m ², ensuring good visibility even in strong light environments.

Display screen size: 246 (W) × 184.5 (H) mm.

2、 Backlight parameters

Backlight type: LED (non replaceable), with a long service life of up to 60000 hours (at a time display brightness of 50% and an ambient temperature of 25 ℃).

Backlight color: white.

3、 Touch screen parameters

Touch type: Analog resistive touch screen, sensitive operation, stable response.

Button size: minimum 2 × 2, convenient for users to perform precise operations.

Lifespan: Over 1 million cycles (operating force below 0.98N), with high durability.

4、 Memory parameters

Flash storage capacity: Built in 15MB, used for storing engineering data, OS storage, etc.

Flash memory lifespan: 100000 cycles, stable and reliable data storage.

Extended Flash Memory: Built in 57MB flash memory that can be expanded as needed to meet larger data storage requirements.

5、 Battery parameters

Battery type: GT15- BAT lithium battery.

Battery life: about 5 years (ambient temperature: 25 ℃), providing stable power support for the device.

6、 Interface parameters

RS-422/485:1 channel, transmission speed of 115200/57600/38400/19200/9600/4800bps, connector shape of 14 pins (female), used for communication of connected devices.

RS-232: Single channel, transmission speed of 115200/57600/38400/19200/9600/4800bps, connector shape of D sub 9-pin (male), can be used for machine communication, computer connection, etc.

Ethernet: The transmission mode is 100BASE-TX, 10BASE-T 1ch, and the connector shape is RJ-45, used for connecting device communication, gateway functions, and personal computer connections.

USB (device): The maximum transfer speed is 12Mbps at full speed, with 1 channel, and the interface shape is USB Mini-B, which can be connected to a personal computer.

USB (Host): Maximum transfer speed of 12Mbps, 1 channel, interface shape of TYPE-A, used for data transfer and storage.

CF card: standard flash card slot with 1 channel, interface shape of TYPEI, used for saving data, data transfer, and GOT startup.

7、 Buzzer output parameters

Output type: monophonic (adjustable pitch), providing simple sound prompts.
