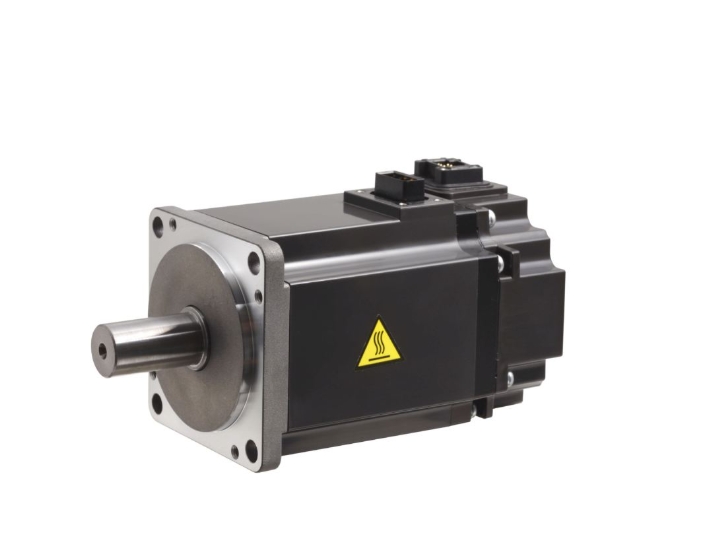

MITSUBISHI HF-KN43K AC Servo Motor Brand new

MITSUBISHI  HF-KN43K AC Servo Motor

Description

Manufacturer: Mitsubishi Electric

Model/Part#: HF-KN43K

Condition: Used

Voltage: 101

Amps: 2.7

Rated/Nominal Speed: 3000

Hertz: 250

Watts: 400

Shaft Size: 9/16″

Technical Data

Primary brand

Mitsubishi Electric

Main function

AC Servo Motor

Product series / family name

MELSERVO JN Series

Functions

Low-inertia rotary AC servo motor - Keyway shaft with key

Rated current

2.7A

Rated active power (kW)

400W / 0.4kW

Degree of protection

IP65

Ambient air temperature for operation

0-40 °C

Compliant with standard(s)

CEbr>CSA

RoHS

Technology used in component

Incremental encoder output

Maximum current

8.1 A

Nominal torque

1.3 N.m

Nominal torque

0.96 ft.lbf

Maximum torque

3.8 N.m

Moment of inertia

0.000042 kg.m²

Net weight

1.4 kg

Resolution

17-bit

131072pulses/revolution

Ambient air temperature for storage

-15…+70 °C

Rotational speed

3000 rpm

Rotational speed

4500rpm (maximum)
