MITSUBISHI GT1030-LBD-C New and Original High quality

GT1030-LBD-C

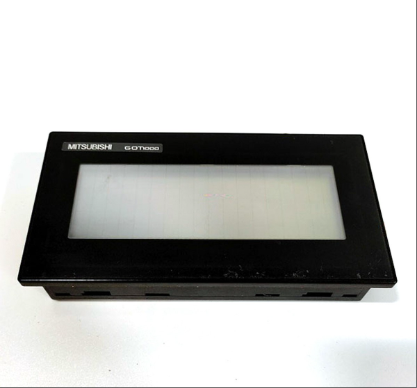

GT1030-LBD-C is a 4.5-inch ultra small human-machine interface (HMI) product that features an STN monochrome (black/white) LCD display with a resolution of 288 × 96 pixels. It is paired with a 3-color LED backlight (green/orange/red) to maintain high-definition display even in strong light environments. Its ultra-thin body design supports IP67 protection level and has excellent dust and water resistance performance. It can adapt to a wide temperature working environment from -20 ℃ to 50 ℃, especially suitable for industrial sites with small spaces or outdoor equipment deployment. The product has a built-in 1.5MB standard memory, supports RS-232 and RS-422 communication interfaces, and is compatible with Mitsubishi FX, A, QnA, Q series PLCs and third-party devices. Through FA transparent transmission function, program reading, writing, and monitoring can be achieved. This model supports Unicode 2.1 standard fonts, can display multiple languages, and achieve text effects such as italics and underscores. With GT Designer 2 programming software, it can quickly complete screen editing and conversion. Its high cost-effectiveness makes it an ideal choice to replace traditional indicator lights or small operation panels in scenarios such as mechanical control and automated production lines.

Technical specifcations for GT1030-LBD-C

Display parameters:

Display type: STN monochrome (black/white) LCD screen.

Resolution: 288 × 96 pixels.

Display color: monochrome display, supporting 3-color LED backlight (green/orange/red).

Perspective: 30 degrees left and right, 20 degrees up, and 30 degrees down (horizontal display mode).

Monitor size: 4.5 inches.

Storage parameters:

User memory: 1.5MB.

Interface parameters:

Built in interfaces: RS-232, RS-422.

Communication speed: Supports multiple speeds such as 115200/57600/38400/19200/9600/4800bps.

Touch screen parameters:

Number of touch buttons: up to 50 per screen.

Touch key size: 16 x 16 dots.

Touch lifespan: over 1 million times (operating force below 0.98N).

Power parameters:

Input voltage: DC24V (± 15%).

Electricity consumption: usually below 2.2W (below 1.7W when backlight is off).

Allowable instantaneous stop time: within 5ms.

Physical parameters:

Dimensions: 145 (W) × 76 (H) × 29.5 (D) mm.

Panel opening size: 137 (W) × 66 (H) mm.

Weight: Approximately 0.3kg (excluding installation accessories).

Environmental parameters:

Protection level: IP67 (front part).

Working temperature: 0 ℃ to 50 ℃.

Storage temperature: -20 ℃ to 60 ℃.

Working humidity: 10% to 90% RH (without frost).

Other features:

Backlight control: supports color, on/off/flashing/off status control, and can set screensaver time.

Contrast adjustment: 16 level adjustment.

Brightness adjustment: 8-level adjustment.

LCD brightness: 300cd/m ² (when white).

LCD lifespan: approximately 50000 hours (at an ambient temperature of 25 ℃).

Buzzer output: Supports adjustable single tone (long, short, none).

Anti noise performance: noise voltage of 1000Vp-p, noise amplitude of 1 μ s (30~100Hz noise simulation experiment).

Insulation resistance: The DC500V megohmmeter measures 10M Ω or above.
