MITSUBISHI GT1685M-STBA New and Original High quality

GT1685M-STBA

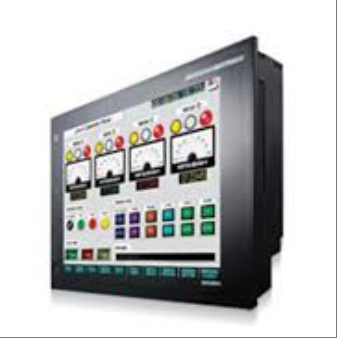

The GT1685M-STBA model is a high-performance 12.1-inch color touchscreen human-machine interface (HMI) product designed specifically for industrial automation and commercial equipment fields. It adopts a high brightness, wide viewing angle TFT color LCD display screen with a resolution of 800 × 600 pixels, which can present 65536 vivid colors, ensuring clear and realistic visual effects even in strong light environments. The product is equipped with an analog resistive touch panel, which is responsive and durable, with a service life of over 1 million operations, suitable for high-frequency human-computer interaction scenarios.

This model supports AC 100-240V wide voltage input and has an IP67 protection level, which can effectively resist dust and water splashes. It is suitable for wide temperature working environments from -20 ℃ to 60 ℃, especially for complex industrial environments. It has a built-in 15MB user storage space (expandable to 57MB) and integrates Ethernet, RS-232, RS-422/485, and USB interfaces. It is compatible with mainstream industrial communication protocols such as CC Link and Modbus, and can seamlessly connect with devices such as PLCs and frequency converters to achieve multi protocol collaborative control. In addition, the product supports multimedia video and RGB signal input, meeting the needs of device status visualization and data monitoring. With its compact structure, high reliability, and scalability, GT1685M-STBA is widely used in fields such as mechanical manufacturing, packaging, logistics, and commercial charging stations, providing efficient and stable human-machine interaction solutions for industrial automation systems.

Technical specifcations for GT1685M-STBA

Display parameters

Screen size: 12.1 inches.

Resolution: 800 × 600 (SVGA), with high display accuracy, can meet the requirements for image clarity in industrial scenes.

Display type: Adopting high brightness and wide viewing angle TFT color LCD display screen, with rich colors and wide viewing angle, 80 degrees left and right, 80 degrees up and 60 degrees down, making it convenient to view screen content from different angles.

Display color: 65536 colors, with natural color transitions that can present delicate visual effects.

LCD brightness: 470cd/m ², ensuring good visibility even in strong light environments.

Brightness adjustment: Supports 8-level brightness adjustment, and users can adjust it according to the actual ambient lighting conditions.

Display screen size: 246 (W) × 184.5 (H) mm.

Character display count: 37 lines of 50 characters (EM) for a 16 dot standard font, and 50 lines of 66 characters (EM) for a 12 dot standard font.

Backlight parameters

Backlight type: LED (non replaceable), with a long service life of up to 60000 hours (at a time display brightness of 50% and an ambient temperature of 25 ℃).

Backlight color: white.

Touch screen parameters

Touch type: Analog resistive touch screen, sensitive operation, stable response.

Button size: minimum 2 × 2, convenient for users to perform precise operations.

Simultaneous key count: Multiple keys cannot be pressed simultaneously to meet basic single touch requirements.

Lifespan: Over 1 million cycles (operating force below 0.98N), with high durability.

Human body sensing parameters

Detection distance: 1m, capable of automatically detecting human proximity and achieving intelligent interaction.

Detection range: 70 degrees in the lower left, left and right, with a wide sensing range.

Detection delay time: 0-4 seconds, can be set according to actual needs.

Memory parameters

Flash storage capacity: Built in 15MB, used for storing engineering data, OS storage, etc.

Flash memory lifespan: 100000 cycles, stable and reliable data storage.

Extended Flash Memory: Built in 57MB flash memory that can be expanded as needed to meet larger data storage requirements.

Battery parameters

Battery type: GT15- BAT lithium battery.

Battery life: about 5 years (ambient temperature: 25 ℃), providing stable power support for the device.

Interface parameters

RS-422/485:1 channel, transmission speed of 115200/57600/38400/19200/9600/4800bps, connector shape of 14 pins (female), used for communication of connected devices.

RS-232: Single channel, transmission speed of 115200/57600/38400/19200/9600/4800bps, connector shape of D sub 9-pin (male), can be used for machine communication, computer connection, etc.

Ethernet: The transmission mode is 100BASE-TX, 10BASE-T 1ch, and the connector shape is RJ-45, used for connecting device communication, gateway functions, and personal computer connections.

USB (device): The maximum transfer speed is 12Mbps at full speed, with 1 channel, and the interface shape is USB Mini-B, which can be connected to a personal computer.

USB (Host): Maximum transfer speed of 12Mbps, 1 channel, interface shape of TYPE-A, used for data transfer and storage.

CF card: standard flash card slot with 1 channel, interface shape of TYPEI, used for saving data, data transfer, and GOT startup.

Select function board: MES interface function uses 1 channel.

Expansion interface: 2ch for installation of communication unit/optional unit.

Buzzer output parameters

Output type: monophonic (adjustable pitch), providing simple sound prompts.

Protect structural parameters

Protection level: The front part meets the IP67F standard, and the interior of the panel meets IP2X (JEM1030), with good dust and water resistance, suitable for harsh industrial environments.

installation parameters

The panel opening size is W × H × D: 316 × 242 × 52mm.

Panel cutting size: 302 (W) × 228 (H) mm.

Weight (excluding installation accessories): 2.7KG.

Power supply parameters

Cooling method: self cooling, without the need for additional cooling equipment, reduces the complexity and cost of the equipment.

Input power supply voltage: AC100-240V (+10%/-15%), wide voltage input range, suitable for different power supply environments.

Input frequency: 50/60Hz ± 5%.

Maximum apparent power: 110VA (maximum load).

Power consumption: Usually 46W, 32W when backlight is turned off, with relatively low energy consumption.

Inrush current: below 28A (4ms).

Allow instantaneous power outage: within 20ms (above AC100V), with certain resistance to voltage fluctuations.

Noise tolerance: noise voltage of 1500Vp-p, noise amplitude of 1 μ s, stable operation in environments with electromagnetic interference through a noise simulator with a noise frequency of 25-60Hz.

Voltage endurance: The power terminal is connected to the ground wire at AC1500V for 1 minute, ensuring the safety of the equipment.

Insulation resistance: The power terminal has good insulation performance when passing through an insulation resistance meter with an insulation resistance of 10M Ω or above for DC500V between ground wires.
