MITSUBISHI GT1030-HBD-C New and Original High quality

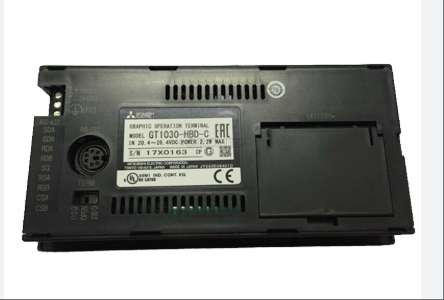

GT1030-HBD-C

GT1030-HBD-C is a 4.5-inch monochrome human-machine interface (HMI) with an STN LCD display screen, a resolution of 288 × 96 pixels, and equipped with 3-color LED backlight (green/orange/red), which can display clearly in strong light environments. Its ultra-thin body design meets the IP67 protection level, with dustproof and waterproof capabilities, suitable for working environments with a wide temperature range of -20 ℃ to 50 ℃, especially for small spaces or outdoor equipment deployment. The product has a built-in 1.5MB memory and supports RS-422/RS-232 communication interfaces. It is compatible with Mitsubishi FX, Q series PLCs and third-party devices, and supports FA transparent transmission function. It can realize program reading, writing, and monitoring. This model supports Unicode 2.1 standard fonts, can display multiple languages, and achieve text effects such as italics and underscores. When combined with GT Designer 3 programming software, it can quickly complete screen editing and conversion, making it a cost-effective alternative to traditional indicator lights or small operation panels in scenarios such as mechanical control and automated production lines.

Technical specifcations for GT1030-HBD-C

Display parameters

Display type: STN monochrome LCD screen (black and white display, high contrast)

Screen size: 4.5 inches

Resolution: 288 (width) x 96 (height) pixels (horizontal display)

Display size: 109.42 (width) × 35.98 (height) millimeters (horizontal display)

Display character count:

When using a 16 point font: 36 words x 6 lines (displayed horizontally)

When using a 12 point font: 48 words x 8 lines (displayed horizontally)

Viewing angles: 30 degrees left and right, 20 degrees up, and 30 degrees down (horizontal display)

Contrast adjustment: 16 levels adjustable

Brightness adjustment: 8-level adjustable

LCD brightness: 200 cd/m ² (when green)

LCD lifespan: approximately 50000 hours (at an ambient temperature of 25 ℃ and a contrast ratio of 1/5)

2、 Backlight parameters

Backlight type: 3-color LED (green, red, orange)

Backlight control: can control color, on/off/flashing/off status, supports screensaver time setting

Backlight lifespan: No need for replacement, long service life

3、 Touch panel parameters

Number of touch keys: up to 50 per screen (matrix mode)

Touch key size: 16 x 16 dots

Touch lifespan: over 1 million times (operating force below 0.98N)

Support simultaneous pressing: 2 touch keys can be pressed simultaneously

4、 Storage parameters

User storage area: Built in flash memory, with a capacity of less than 1.5MB, used for storing engineering data

Memory lifespan (number of writes): 100000 times

SRAM capacity: 128KB

5、 Battery parameters (sold separately)

Battery type: GT11-50BAT lithium battery

Backup objects: clock data, alarm records, recipe data, time action setting values

Battery life: about 5 years (ambient temperature 25 ℃)

6、 Interface parameters

PLC communication interface:

RS-422： 1 channel, transmission speed 115200/57600/38400/19200/9600/4800bps, interface shape is a 9-pin connector terminal block

RS-422/485： 1 channel, with the same transmission speed as above, the interface shape is a 9-pin connector terminal block, and the terminal resistance can be selected as Open/110 Ω/330 Ω (factory value is 330 Ω)

Computer communication interface:

RS-232： 1 channel, same transmission speed as above, interface shape is MINI DIN 6-pin (female head), used for computer communication (engineering data upload/download, OS installation, transparent function)

7、 Other specifications

Buzzer output: single tone (long, short, none), emits sound when pressing the touch key

Protection structure: equivalent to IP67f (JEM1030) (front part)

Dimensions: 145 (width) x 76 (height) x 29.5 (depth) millimeters (excluding installation accessories, when displayed horizontally)

Panel opening size: 137 (width) x 66 (height) millimeters (when displayed horizontally)

Weight: Approximately 0.3 kilograms (excluding installation accessories)

Corresponding software package: GT Designer 3 Version 1.17T or above

8、 Power parameters

Input power supply voltage: DC24V（+10% -15%）， Ripple voltage below 200mV

Fuse: Built in, non replaceable, 0.5A

Power consumption: below 2.2W (90mA/DC24V), below 1.7W (70mA/DC24V) when the backlight is off

Impulse current: 1ms below 18A (DC26.4V)

Allowable instantaneous stop time: within 5ms

Anti noise performance: noise voltage of 1000Vp-p, noise amplitude of 1 μ s (based on noise frequency simulation experiment of 30-100Hz)

Capable of withstanding voltage: AC500V for 1 minute (between all power terminals and ground terminals of GOT)

Insulation resistance: measured by a DC500V megohmmeter with a resistance of over 10M Ω (between all power terminals and ground terminals of GOT)
