MITSUBISHI GT1020-LBD-C New and Original High quality

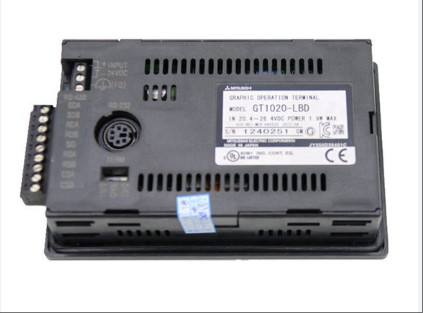

GT1020-LBD-C

GT1020-LBD-C is a palm sized ultra small 3.7-inch touchscreen human-machine interface (HMI) with a widescreen design and 3-color LED backlight (green, orange, red) that can maintain high contrast display in strong light environments. Its core configuration includes a 160 × 64 resolution STN LCD screen, built-in 512KB memory, supports DC24V or DC5V dual voltage power supply mode, and is equipped with RS-232 and RS-422 dual interfaces. This model supports Unicode 2.1 standard fonts, can display multiple languages, and achieve text effects such as italics and underscores. It is compatible with Mitsubishi FX, A, QnA, Q series PLCs and third-party devices, and can achieve program reading, writing, and monitoring through FA transparent transmission function. Its IP67 protection level can resist dust and water splashes, with a working temperature range of -20 ℃ to 50 ℃, especially suitable for deployment in small spaces such as mechanical manufacturing and automated production lines. It is a cost-effective solution to replace traditional indicator lights or small operation panels.

Technical specifcations for GT1020-LBD-C

Display parameters

Display type: STN LCD screen (black and white display, 16 level grayscale)

Screen size: 3.7 inches (widescreen design)

Resolution: 160 × 64 pixels (QVGA format)

Display size: The specific value is not clearly indicated, but the overall size is 113mm (width) × 74mm (height)

Backlight type: 3-color LED backlight (green, orange, red), supporting brightness adjustment

Contrast: High contrast design ensures clear display in strong light environments

2、 Storage parameters

Built in memory: 512KB (for storing engineering data)

Memory lifespan: 100000 write cycles

Expansion interface: Reserved CF card interface (mentioned in some materials, but not a standard feature)

3、 Interface parameters

PLC communication interface:

RS-422:1 channel, supporting 115.2kbps high-speed communication

RS-232:1 channel, supporting 115.2kbps high-speed communication

Computer communication interface: Implementing engineering data upload/download, OS installation, and transparency functions through RS-232 interface

Protocol support: compatible with Mitsubishi FX, A, QnA, Q series PLCs and third-party devices

4、 Touch panel parameters

Touch mode: resistive touch screen

Touch lifespan: over 1 million times (operating force below 0.98N)

Touch key function: supports virtual key operation, can achieve screen switching, data input, etc

5、 Power parameters

Input voltage: DC24V (± 15%), supports DC5V power supply models (optional)

Power consumption: The specific value is not clearly indicated, but it belongs to low-power design

Insulation resistance: ≥ 10M Ω (between power terminal and ground terminal)

Anti noise performance: 1000Vp-p noise voltage, 1 μ s noise amplitude (30~100Hz simulation experiment)

6、 Physical parameters

Dimensions: 113mm (width) x 74mm (height) x 27mm (depth)

Panel opening size: 105mm (width) × 66mm (height) (allowable tolerance+1/-0mm)

Weight: Approximately 0.2kg (lightweight design)

Protection level: IP67 (front panel, dustproof and waterproof)

7、 Environmental parameters

Working temperature: -20 ℃ to 50 ℃ (wide temperature range)

Storage temperature: -30 ℃ to 70 ℃

Working humidity: 10% to 90% RH (without frost)

Altitude: below 2000m

8、 Software and Features

Supporting software: GT Designer 3 (Engineering Screen Editing Tool)

Font support: Unicode 2.1 standard font, supports display in multiple languages

Text effects: italic, underline, italic underline, etc

Special function: FA transparent transmission function (realizing PLC program reading, writing, and monitoring)

Screen layout: highly flexible, supports custom interface design

9、 Other characteristics

Installation method: Supports horizontal or vertical placement, suitable for narrow spaces

Certification standard: CE certification

Maintenance requirement: Simple daily maintenance, mainly involving lithium battery replacement (for clock data backup)
