MITSUBISHI GT1020-LBL-C New and Original High quality

GT1020-LBL-C

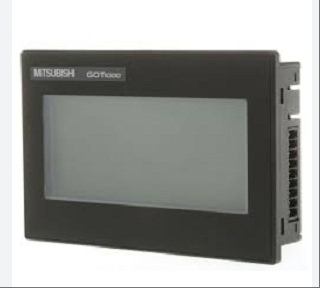

GT1020-LBL-C is a 3.7-inch compact monochrome touch screen human-machine interface (HMI) designed specifically for small spaces and industrial environments. Its core features include STN LCD screen (160 × 64 resolution) and 3-color LED backlight (green/orange/red), supporting wide viewing angle display and high contrast images, ensuring clear readability in strong light environments. This model adopts DC5V power supply mode, integrates RS-422/RS-322 dual interfaces, is compatible with Mitsubishi FX, QnA, Q series PLCs and third-party devices, and achieves program reading, writing and monitoring through FA transparent transmission function. Its IP67 protection level can resist dust and water splashes, with a working temperature range covering -20 ℃ to 50 ℃, and built-in clock function, supporting alarm recording and time display. In addition, the GT1020-LBL-C is equipped with 512KB user memory, supports Unicode multilingual display and italic/underline text effects, and can quickly complete screen layout and functional configuration when combined with GT Modeler 3 software. It is a cost-effective solution to replace traditional indicator lights or small operation panels in scenarios such as mechanical manufacturing and automated production lines.

Technical specifcations for GT1020-LBL-C

display performance

Display type: STN monochrome (black/white) LCD screen, supporting high contrast display, suitable for strong light scenes in industrial environments.

Screen size: 3.7 inches (113mm wide x 74mm high x 27mm deep), compact design saves installation space.

Resolution: 160 × 64 pixels (horizontal display), ensuring image clarity and information density.

Display size: 86.4mm (width) × 34.5mm (height), suitable for narrow border design requirements.

Contrast ratio: 16 levels adjustable, suitable for optimizing visibility under different lighting conditions.

Backlight lifespan: approximately 50000 hours (at an ambient temperature of 25 ℃), reducing long-term maintenance costs.

Perspective range: 30 degrees left and right, 20 degrees up, and 30 degrees down, meeting the needs of multi angle operation.

2、 Storage and Processing

User memory: 512KB, supporting storage of critical information such as engineering data and alarm records.

Storage lifespan: 100000 write cycles to ensure data persistence.

Processor: Built in RISC CPU, supporting high-speed computing and multitasking.

3、 Interface and Communication

PLC communication interface:

RS-422:1 channel, supports 115.2kbps high-speed communication, compatible with Mitsubishi FX/QnA/Q series and third-party PLCs.

RS-232:1 channel, supporting 115.2kbps high-speed communication, suitable for computer programming and data transmission.

Power interface: DC5V power supply, supports taking power from PLC programming port, simplifies wiring design.

Communication function: Supports FA transparent transmission, enabling PLC program reading, writing, and monitoring.

4、 Machinery and Protection

Protection level: IP67 (front panel), dustproof and waterproof design, suitable for harsh industrial environments.

Panel opening size: 105mm (width) × 66mm (height), suitable for standardized installation requirements.

Weight: 0.2kg (excluding installation bracket), lightweight design for easy integration.

Installation method: Supports horizontal or vertical placement, flexibly adapts to device layout.

5、 Environmental adaptability

Working temperature: -20 ℃ to 50 ℃, covering extreme industrial scenarios.

Storage temperature: -30 ℃ to 70 ℃, ensuring long-term storage stability of the equipment.

Humidity range: 10% to 90% RH (frost free), suitable for high humidity environments.

Anti noise performance: 1000Vp-p noise voltage, 1 μ s noise amplitude (30-100Hz simulation experiment), ensuring communication stability.

6、 Electrical and Safety

Input voltage: DC5V, compatible with industrial power standards.

Insulation resistance: ≥ 10M Ω (between the power terminal and the grounding terminal) to ensure electrical safety.

Certification standard: CE certification, in compliance with international safety regulations.

7、 Function Expansion

Clock function: Built in clock module, supporting alarm recording and time display.

Multi language support: Unicode 2.1 standard font, compatible with interfaces of multiple languages.

Text effect: Supports typesetting functions such as italics and underscores to enhance the readability of the user interface.

Screen layout: Highly customizable design, supporting custom interfaces and functional configurations.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
