PFXGP4601TAD

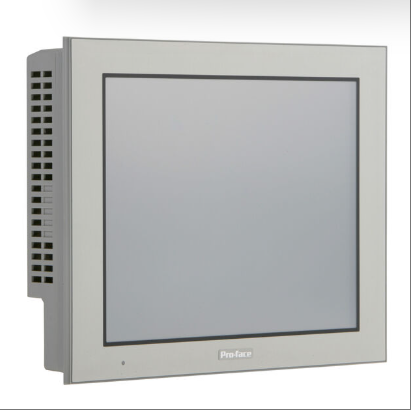

The PFXGP4601TAD model is a 12.1-inch high-performance human-machine interface (HMI) with a 65536 color TFT true color LCD display screen (resolution 800 × 600 pixels), paired with a high-precision resistive touch screen and 16 level brightness adjustment function, providing a clear and delicate visual experience in complex industrial environments; The device supports DC24V wide voltage input, with built-in 32MB storage space and 132KB logical program area. It achieves multi protocol device interconnection through RS-232C, RS-422/485 serial ports, and 10/100Mbps Ethernet interfaces. It is also equipped with USB 2.0 and SD card slots to meet the needs of fast data transmission and expansion; Its IP65f protection level and fully enclosed fanless design can resist dust, oil stains, and vibration impacts. The working temperature range covers 0 ℃ to 50 ℃ and has passed international safety certifications such as CE, UL, and cUL. It is suitable for real-time monitoring, fault diagnosis, and remote operation and maintenance in heavy industry sites; With the help of GP Pro EX development software, users can quickly build multilingual interfaces (supporting Japanese, Simplified Chinese, etc.), and use functions such as animation and trend charts to achieve device status visualization and intelligent management, becoming the core interactive terminal for digital upgrading in fields such as energy, manufacturing, and shipbuilding.
Technical specifcations for PFXGP4601TAD
Display parameters
Display screen type: TFT true color LCD
Display size: 12.1 inches
Resolution: 800 × 600 pixels (SVGA)
Effective display area: W246.0mm × H184.5mm
Display color: 65536 colors (no flicker)/16384 colors (flicker)
Backlight: White LED (Users cannot replace it by themselves, if replacement is needed, please contact the local Pro face branch)
Backlight lifespan: Over 50000 hours (continuous operation at 25 ℃ reduces brightness to 50% of its original level)
Brightness adjustment: 16 levels (adjustable through touch panel or software)
2、 Touch panel parameters
Touch panel type: resistive (analog, single touch)
Touch panel resolution: 1024 × 1024
Touch panel lifespan: over 1000000 cycles
Language fonts: Supports Japanese (6962 characters, including 607 non Chinese characters, compliant with JIS standards 1&2), ANK (158 characters, downloadable Korean, Simplified Chinese, and Traditional Chinese fonts)
3、 Interface parameters
Serial port (COM1): Asynchronous transmission RS-232C, data length 7 or 8 bits, stop bit 1 or 2 bits, parity none, odd or even, data transmission rate 2400bps to 115200bps, D-Sub 9-pin (convex) connector
Serial port (COM2): Asynchronous transmission RS-422/485, data length 7 or 8 bits, stop bit 1 or 2 bits, parity none, odd or even, data transmission rate 2400bps to 115200bps (optional 187.5kbps MPI), D-Sub 9-pin (convex) connector
Ethernet (LAN): IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, RJ-45 connector x 1
USB interface:
USB 2.0 (TYPE-A connector) x 1: Power supply voltage DC 5V ± 5%, output current below 500mA, communication distance below 5m
USB 2.0 (Mini-B connector) x 1: communication distance below 5m
SD card slot: Supports SD cards (up to 32GB)
4、 Storage parameters
Application storage: 32MB (FLASH EPROM, including logic program area)
Logical program space: 132KB (FLASH EPROM, can accommodate 15000 steps of program)
Backup storage: 320KB (SRAM, backup memory with replaceable lithium battery)
Variable area: 64KB (SRAM, backed up with replaceable lithium battery)
5、 Electrical parameters
Input voltage: DC 24V
Rated voltage: DC 19.2V to 28.8V
Allowable power loss: below 10ms
Power consumption: below 17W
Instantaneous current: below 30A
Insulation strength: AC1000V, 20mA less than 1 minute (between power terminal and FG terminal)
Insulation resistance: DC500V, above 10M Ω (between power terminal and FG terminal)
6、 Environmental parameters
Working temperature: 0 ℃ to 55 ℃
Storage temperature: -20 ℃ to+60 ℃
Working humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature: below 39 ℃)
Storage humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature: below 39 ℃)
Dust prevention: below 0.1mg/m ³ (insulation level)
Pollution level: Level 2 pollution
Air quality: Non corrosive gases
Air pressure (working altitude): 800hPa to 1114hPa (altitude below 2000 meters)
7、 Mechanical parameters
Anti vibration performance: in accordance with IEC/EN61131-2 standard, single amplitude 3.5mm from 5Hz to 9Hz, constant acceleration 9.8m/s ² from 9Hz to 150Hz, 10 times (100 minutes) in X, Y, and Z axes respectively
Impact resistance: Complies with IEC/EN61131-2 standard, 147m/s ², 3 times for X, Y, and Z axes each
Anti interference performance: interference voltage of 1000Vp-p, pulse period of 1 µ s, rise time of 1ns (through noise simulator)
Antistatic performance: Contact discharge 6kV (compliant with IEC/EN61000-4-2, Level 3 standards)
Protection level: equivalent to IP65f NEMA # 250 TYPE 4X/13 (front panel installed and fixed)
Cooling method: natural air cooling
Weight: below 2.5kg (only for the main unit)
Dimensions: W315mm × H241mm × D56mm
Panel opening size: W301.5mm × H227.5mm, panel thickness 1.6 to 5mm
