PFXGP4601TAA

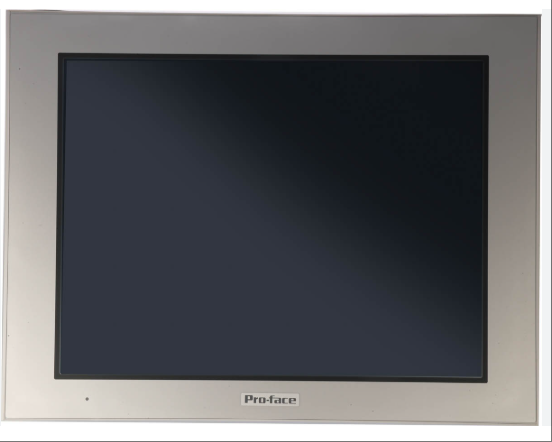

The PFXGP4601TAA model is a 12.1-inch high-performance industrial human-machine interface (HMI), featuring a 65536 color TFT true color LCD display with a resolution of 800 × 600 pixels, providing users with a clear and delicate visual experience. It is equipped with a high-precision resistive touch screen, supporting multi touch (single touch), with sensitive and durable operation, suitable for complex operation needs in industrial sites. The device supports DC 24V wide voltage input, with built-in 32MB storage space and 132KB logic program area. It achieves multi protocol device interconnection through RS-232C, RS-422/485 serial ports, and 10/100Mbps Ethernet interfaces. It is also equipped with USB 2.0 and SD card slots to meet the needs of fast data transmission and expansion. Its IP65f protection level and fully enclosed fanless design can resist dust, oil pollution, and vibration impact. The working temperature range covers 0 ℃ to 55 ℃ and has passed international safety certifications such as CE, UL, and cUL. It is suitable for real-time monitoring, fault diagnosis, and remote operation and maintenance in heavy industry sites and is an ideal interactive terminal for digital upgrades in energy, manufacturing, shipbuilding, and other fields.
Technical specifcations for PFXGP4601TAA
Display parameters
Display screen type: TFT true color LCD
Display size: 12.1 inches
Resolution: 800 × 600 pixels (SVGA)
Effective display area: W246.0mm × H184.5mm
Display color: 65536 colors
Backlight: White LED (cannot be replaced by the user)
Backlight lifespan: Over 50000 hours (continuous operation at 25 ℃ reduces brightness to 50% of its original level)
Brightness adjustment: Supports brightness adjustment function
2、 Touch panel parameters
Touch panel type: resistive (analog, single touch)
Touch panel resolution: 1024 × 1024
Touch panel lifespan: over 1000000 cycles
3、 Interface parameters
Serial port (COM1): Asynchronous transmission RS-232C, data transmission rate 2400bps to 115200bps
Serial port (COM2): Asynchronous transmission RS-422/485, data transfer rate 2400bps to 115200bps
Ethernet (LAN): Supports 10BASE-T/100BASE-TX
USB interface: USB 2.0 (TYPE-A connector) x 1, USB 2.0 (Mini-B connector) x 1
SD card slot: Supports SD cards
4、 Storage parameters
Application storage: 32MB (including logical program area)
Logical program space: 132KB
Backup storage: 320KB (SRAM, backup memory with replaceable lithium battery)
Variable area: 64KB (SRAM, backed up with replaceable lithium battery)
5、 Electrical parameters
Input voltage: DC 24V
Rated voltage: DC 19.2V to 28.8V
Allowable power loss: below 10ms
Power consumption: below 17W
Insulation strength: AC1000V, 20mA less than 1 minute (between power terminal and FG terminal)
Insulation resistance: DC500V, above 10M Ω (between power terminal and FG terminal)
6、 Environmental parameters
Working temperature: 0 ℃ to 55 ℃
Storage temperature: -20 ℃ to+60 ℃
Working humidity: 10% RH to 90% RH (no condensation)
Storage humidity: 10% RH to 90% RH (no condensation)
Dust prevention: below 0.1mg/m ³ (insulation level)
Pollution level: Level 2 pollution
Air quality: Non corrosive gases
Air pressure (working altitude): 800hPa to 1114hPa (altitude below 2000 meters)
7、 Mechanical parameters
Anti vibration performance: in accordance with IEC/EN61131-2 standard
Impact resistance: Complies with IEC/EN61131-2 standard
Anti interference performance: interference voltage of 1000Vp-p, pulse period of 1 µ s, rise time of 1ns
Antistatic performance: Contact discharge 6kV
Protection level: IP65f NEMA # 250 TYPE 4X/13 (front panel after installation and fixation)
Cooling method: natural air cooling
Weight: below 2.5kg
Dimensions: W315mm × H241mm × D56mm
Panel opening size: W301.5mm × H227.5mm
