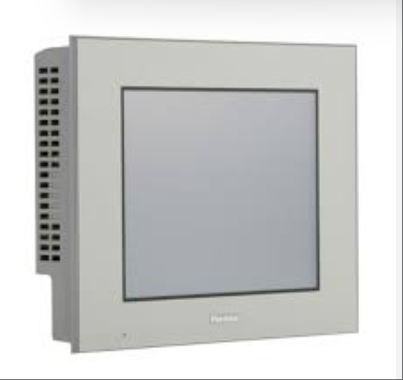

PFXGP4501TADW
PFXGP4501TADW is a 10.4-inch high-performance human-machine interface (HMI) designed specifically for harsh industrial environments, combining high-resolution display, strong anti-interference communication, and military grade protection. It is equipped with a 65536 color TFT true color LCD screen (640 × 480 resolution) and a high-precision resistive touch screen, supporting clear visualization operations in industrial multi light source environments; Built in dual communication gateway architecture, integrating 10/100Mbps Ethernet, RS-232/422/485 three serial ports, and USB 2.0 interface, compatible with mainstream industrial protocols such as Modbus TCP/RTU, OPC UA, EtherNet/IP, and can seamlessly connect heterogeneous devices such as PLCs, frequency converters, sensors, etc., achieving real-time data exchange and cross platform control; The body adopts an IP66f/NEMA 4X fully enclosed fanless design, which has passed the -20 ℃ to 60 ℃ wide temperature certification, MIL-STD-810G vibration and impact testing, and salt spray corrosion protection. It can still operate stably in extreme scenarios such as dust, oil stains, and high humidity; The supporting GP Pro EX development software supports dynamic trend charts, multi-level alarms, recipe management, and other functions. It can quickly build cross language interfaces (including 15 languages such as Chinese/English/Japanese) and is equipped with an SD card expansion slot for rapid program updates and historical data archiving; With CE/UL/cUL/ATEX/CCC and other multinational safety certification and electromagnetic compatibility (EMC) Class A standards, this model has become a core interactive terminal for upgrading digital production lines, remote operation and maintenance of equipment and intelligent decision-making in heavy industries such as petrochemical industry, shipbuilding, mining machinery, etc.
Technical specifcations for PFXGP4501TADW
Display parameters
Display screen type: TFT true color LCD
Display screen size: 10.4 inches
Resolution: 640 × 480 pixels (VGA)
Effective display area: W211.2mm × H158.4mm
Display color: 65536 colors (no flicker)/16384 colors (flicker)
Backlight: White LED
Brightness adjustment: Level 8 (adjustable through touch panel)
Backlight lifespan: Over 50000 hours (continuous operation at 25 ℃ reduces brightness to 50% of its original level)
2、 Touch panel parameters
Touch panel type: resistive (analog)
Touch panel resolution: 1024 × 1024
Touch panel lifespan: over 1000000 cycles
3、 Interface parameters
Serial port (COM1): Asynchronous transmission RS-232C, data length 7 or 8 bits, stop bit 1 or 2 bits, parity none, odd or even, data transmission rate 2400bps to 115.2kbps, D-Sub 9-pin (convex) connector
Serial port (COM2): Asynchronous transmission RS-422/485, data length 7 or 8 bits, stop bit 1 or 2 bits, parity none, odd or even, data transmission rate 2400bps to 115.2kbps (optional 187.5kbps MPI), D-Sub 9-pin (convex) connector
Ethernet (LAN): IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, RJ-45 connector x 1
USB interface:
USB 2.0 (TYPE-A connector) x 1: Power supply voltage DC 5V ± 5%, output current below 500mA, communication distance below 5m
USB 2.0 (Mini-B connector) x 1: communication distance below 5m
SD card slot: Supports large capacity SD cards (specific capacity limit not explicitly mentioned, but generally supports 32GB and above)
4、 Storage parameters
Internal memory: FLASH EPROM 16MB (including logic program area)
Backup memory: SRAM 128KB (backup memory with replaceable lithium battery)
Program area: FLASH EPROM 132KB (can hold 15000 steps of program)
5、 Clock parameters
Clock accuracy: ± 65 seconds/month (error at room temperature and with power off). The changes in operating environment and battery life may cause this error to expand to a range of -380 to+90 seconds per month.
6、 Electrical parameters
Input voltage: DC 24V
Rated voltage: DC 19.2V to 28.8V
Allowable power loss: below 10ms
Power consumption: below 17W
Instantaneous current: below 30A
Insulation strength: AC1000V, 20mA less than 1 minute (between power terminal and FG terminal)
Insulation resistance: DC500V, above 10M Ω (between power terminal and FG terminal)
7、 Environmental parameters
Working temperature: 0 ℃ to 50 ℃
Storage temperature: -20 ℃ to+60 ℃
Working humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature below 39 ℃)
Storage humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature below 39 ℃)
Dust prevention: below 0.1mg/m ³ (insulation level)
Pollution level: Level 2 pollution
Air quality: Non corrosive gases
Air pressure (working altitude): 800hPa to 1114hPa (altitude below 2000 meters)
8、 Mechanical parameters
Anti vibration performance: in accordance with IEC/EN61131-2 standard, single amplitude 3.5mm from 5Hz to 9Hz, constant acceleration 9.8m/s ² from 9Hz to 150Hz, 10 times (100 minutes) in X, Y, and Z axes respectively
Impact resistance: Complies with IEC/EN61131-2 standard, 147m/s ², 3 times for X, Y, and Z axes each
Anti interference performance: interference voltage of 1000Vp-p, pulse period of 1 μ s, rise time of 1ns (through noise simulator)
Antistatic performance: Contact discharge 6kV (compliant with IEC/EN61000-4-2, Level 3 standards)
Protection level: equivalent to IP65f NEMA # 250 TYPE 4X/13 (front panel installed and fixed)
Cooling method: natural air cooling
Weight: below 2.5kg (only for the main unit)
Dimensions: W315mm × H241mm × D56mm
Panel opening size: W301.5mm × H227.5mm, panel thickness 1.6 to 5mm
