Pro-face  PFXGP2300-TC41-24V Touch Screen

Interface Overview

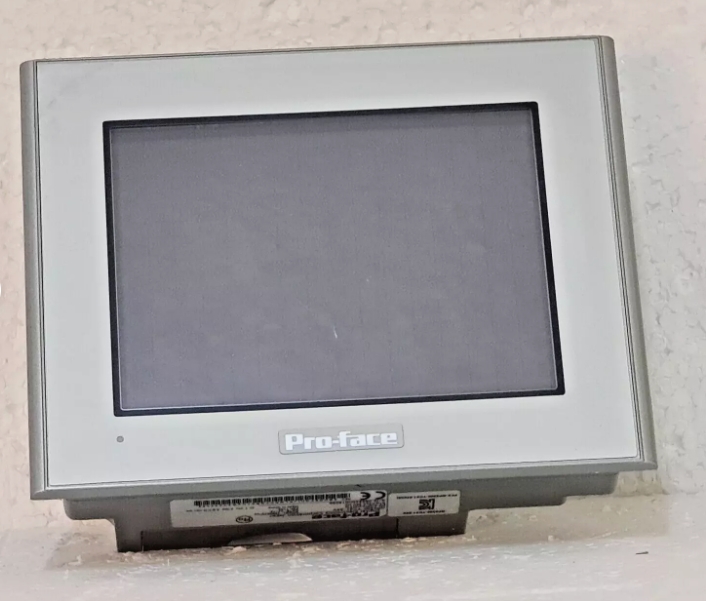

Pro-face/Xycom's GP2300-TC41-24V is an HMI with a 5.7 inch display. This display is a TFT type color LCD touch screen with the capacity to display 256 colors with no blink or 64 colors per 3-speed blink, which can be switched by using the software. The resolution of this display is 320 by 240 pixels. The display is illuminated by the CCFL backlight. There are four brightness adjustment levels available on the touch panel. The touch panel has a resolution of 6 by 12 keys per screen with 1 or 2 point touch.

Specification

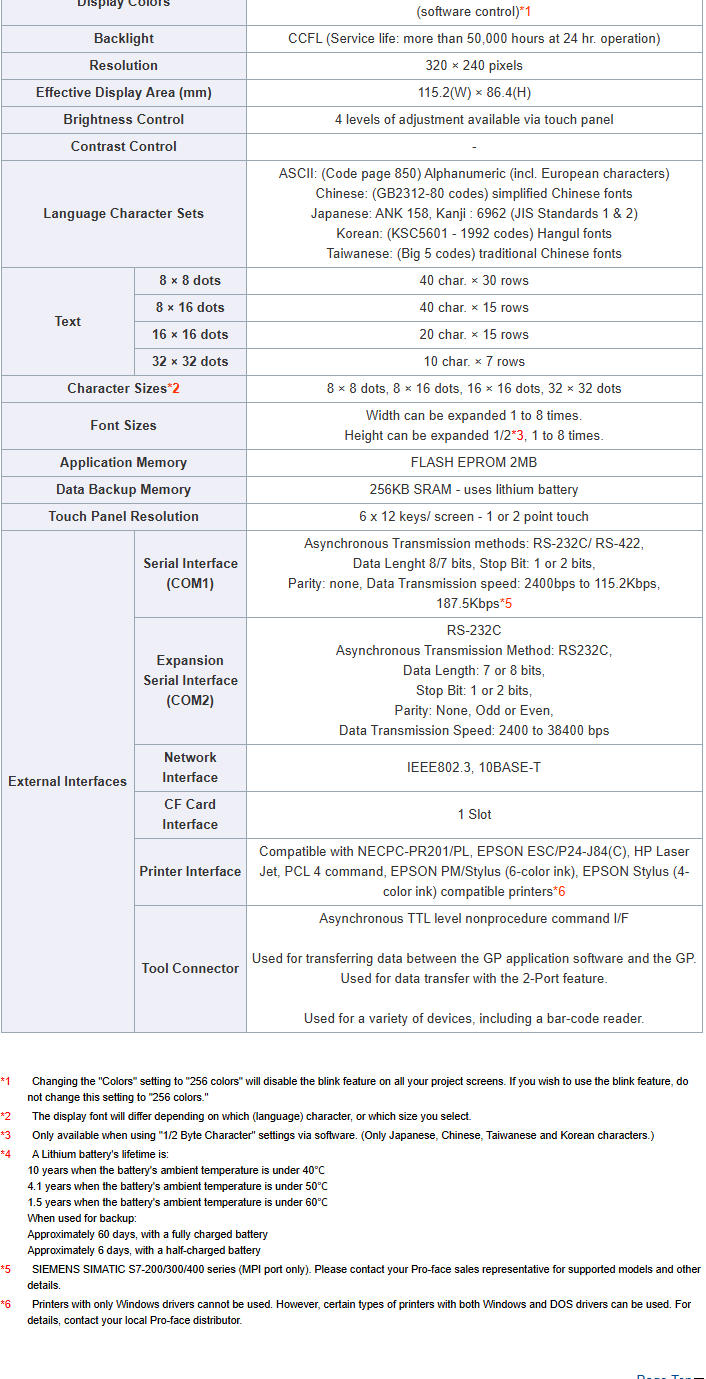

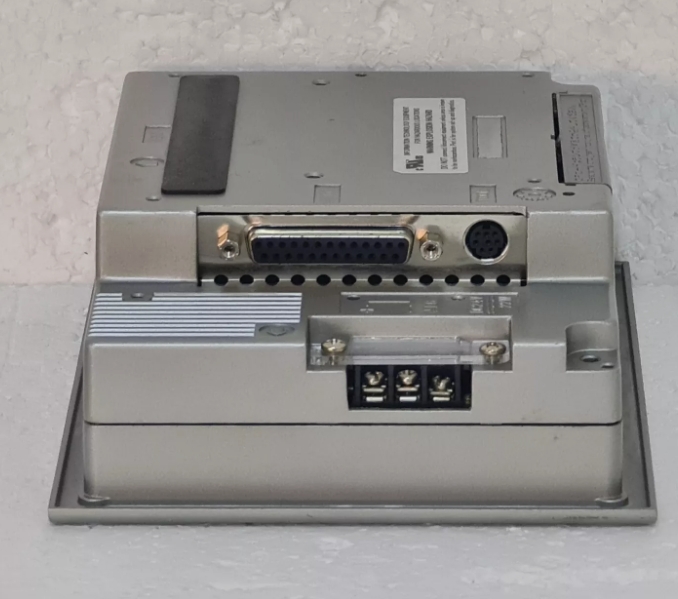

The GP2300-TC41-24V has two serial interfaces. The primary serial interface uses an RS-232C/422 asynchronous transmission method. The expansion serial interface uses an asynchronous RS-232C method. The GP2300-TC41-24V has an IEEE802.3, 10BASE-T network interface in addition to a CF card slot. The GP2300-TC41-24V is also compatible with several different styles of printers such as the LaserJet PCL 4 command, NEC PC-PR201/PL, HP EPSON PM/Stylus (6-color ink), EPSON ESC/P24-J84(C), and the EPSON Stylus (4-color ink).

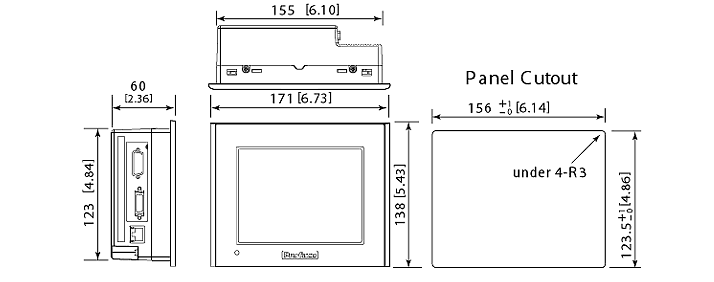

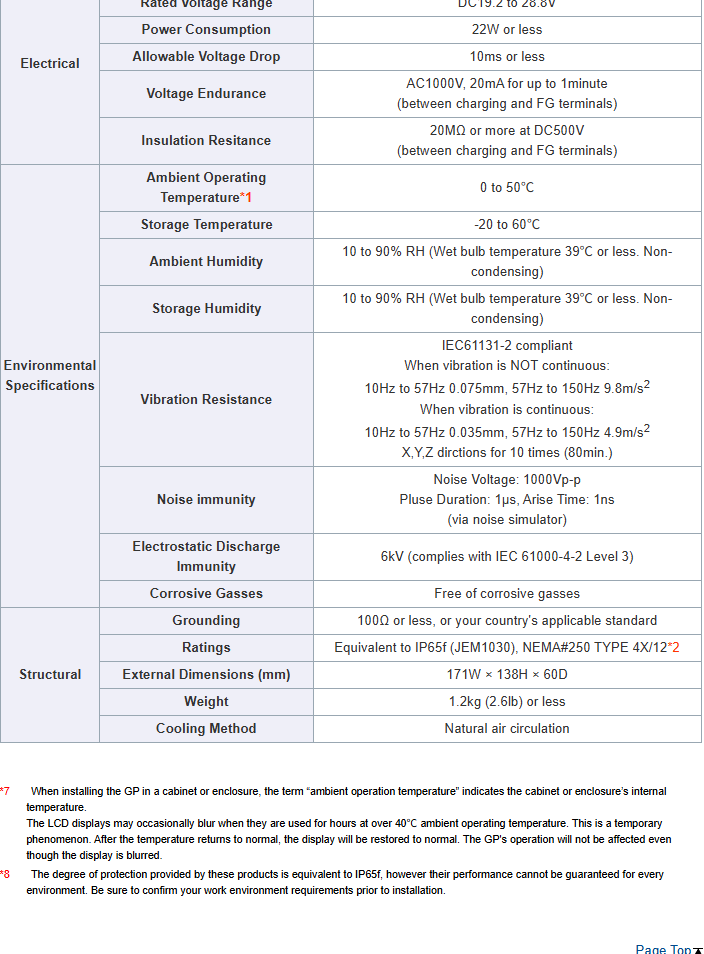

The GP2300-TC41-24V takes 24V of DC power input. This unit draws 22W or less of power. Humidity levels should remain between 10% and 90% (non-condensing wet bulb 39°C or less) to ensure proper functionality and longevity of the device. The optimal temperature range for this device during use is 0°C to 50°C. The external dimensions of this unit are 171mm wide by 138mm high by 60mm deep. The estimated weight of this unit is 1.2kg/2.6lbs.

Our Services:

1、All our products are new and original, and of good quality.

2、Our prices are very competitive.

3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
