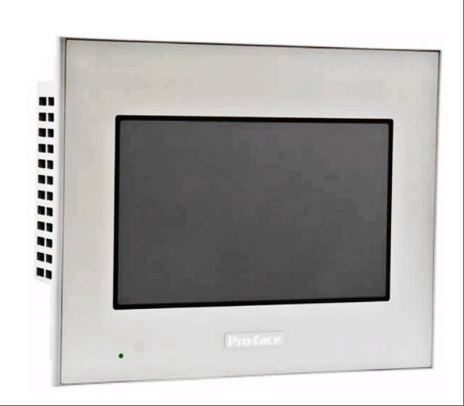

PFXGP4501TAAC
PFXGP4501TAAC is a high-performance human-machine interface (HMI) device designed specifically for industrial automation. It features a 10.4-inch TFT true color LCD screen (640 × 480 resolution, 65536 color display) and a high-sensitivity resistive touch screen, providing a clear visual experience and precise operational feedback; Equipped with multiple communication interfaces such as Ethernet, RS-232/422/485, and USB, it supports seamless connection of multi protocol devices and is equipped with an SD card slot for data backup and program expansion; Through IP65f protection level, wide temperature working range (0 ℃~55 ℃) and anti vibration and shock design, it adapts to harsh industrial environments. At the same time, it integrates multilingual interface, GP Pro EX programming tool and real-time clock function, which can quickly build intuitive operation interface and realize intelligent monitoring such as fault alarm and trend analysis. It is widely used in manufacturing production line control, energy equipment management and complex process optimization. With high stability, easy maintenance and global safety certification (CE/UL/KC), it has become the core interactive terminal for improving production efficiency and system reliability in the Industry 4.0 era.
Technical specifcations for PFXGP4501TAAC
Display parameters
Display screen type: TFT true color LCD
Display screen size: 10.4 inches
Resolution: 640 × 480 pixels (VGA)
Effective display area: W211.2mm × H158.4mm
Display color: 65536 colors (no flicker)/16384 colors (flicker)
Backlight: White LED (Users cannot replace it by themselves, please contact the local branch of Pro face)
Brightness adjustment: 16 levels (adjustable through touch panel or software)
Backlight lifespan: Over 50000 hours (continuous operation at 25 ℃ reduces brightness to 50% of its original level)
2、 Touch panel parameters
Touch panel type: resistive (analog)
Touch panel resolution: 1024 × 1024
Touch panel lifespan: over 1000000 cycles
3、 Interface parameters
Serial port (COM1): Asynchronous transmission RS-232C, data length 7 or 8 bits, stop bit 1 or 2 bits, parity none, odd or even, data transmission rate 2400bps to 115.2kbps, D-Sub 9-pin (convex) connector
Serial port (COM2): Asynchronous transmission RS-422/485, data length 7 or 8 bits, stop bit 1 or 2 bits, parity none, odd or even, data transmission rate 2400bps to 115.2kbps (optional 187.5kbps MPI), D-Sub 9-pin (convex) connector
Ethernet (LAN): IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, RJ-45 connector x 1
USB interface: USB 2.0 (TYPE-A connector) x 1, power supply voltage DC 5V ± 5%, output current below 500mA, communication distance below 5m; There is also USB 2.0 (Mini-B connector) x 1, with a communication distance of less than 5m
4、 Storage parameters
Control memory: Variable area SRAM 64KB (backup memory with replaceable lithium battery)
Program area: FLASH EPROM 132KB (can hold 15000 steps of program)
Internal memory: FLASH EPROM 32MB (including logic program area)
Backup memory: SRAM 320KB (backup memory with replaceable lithium battery)
5、 Clock parameters
Clock accuracy: ± 65 seconds/month (error at room temperature and with power off). The changes in operating environment and battery life may cause this error to expand to a range of -380 to+90 seconds per month.
6、 Electrical parameters
Input voltage: AC100V to 240V
Rated voltage: AC85V to 264V
Rated frequency: 50/60Hz
Rated frequency range: 47Hz to 63Hz
Allowable power loss: within 1 cycle (with an interval of more than 1 second)
Power consumption: below 44VA at 100 Vac, below 58VA at 240 Vac
Instantaneous current: below 30A
Insulation strength: AC1500V, 20mA less than 1 minute (between power terminal and FG terminal)
Insulation resistance: DC500V, above 10M Ω (between power terminal and FG terminal)
7、 Environmental parameters
Working temperature: 0 ℃ to 55 ℃
Storage temperature: -20 ℃ to+60 ℃
Working humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature below 39 ℃)
Storage humidity: 10% RH to 90% RH (no condensation, wet bulb thermometer temperature below 39 ℃)
Dust prevention: below 0.1mg/m ³ (insulation level)
Pollution level: Level 2 pollution
Air quality: Non corrosive gases
Air pressure (working altitude): 800hPa to 1114hPa (altitude below 2000 meters)
8、 Mechanical parameters
Anti vibration performance: in accordance with IEC/EN61131-2 standard, single amplitude 3.5mm from 5Hz to 9Hz, constant acceleration 9.8m/s ² from 9Hz to 150Hz, 10 times (100 minutes) in X, Y, and Z axes respectively
Impact resistance: Complies with IEC/EN61131-2 standard, 147m/s ², 3 times for X, Y, and Z axes each
Anti interference performance: interference voltage 1500Vp-p, pulse period 1 µ s, rise time 1ns (through noise simulator)
Antistatic performance: Contact discharge 6kV (compliant with IEC/EN61000-4-2,3 standards)
Protection level: equivalent to IP65f NEMA # 250 TYPE 4X/13 (front panel installed and fixed)
Cooling method: natural air cooling
Weight: less than 2kg (only for the main unit)
Dimensions: W272.5mm × H214.5mm × D57mm
Panel opening size: W259mm × H201mm, panel thickness 1.6 to 5mm
