MITSUBISHI GT1665M-STBD New and Original High quality

GT1665M-STBD

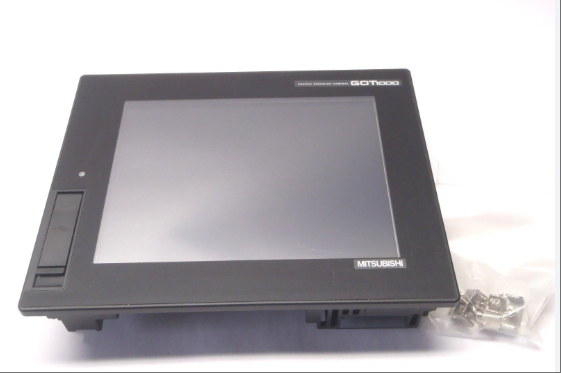

The GT1665M-STBD model product is an 8.4-inch TFT color LCD touch screen human-machine interface device with high resolution (SVGA, 800 × 600 pixels) and 65536 color display capability. It uses a high brightness, wide viewing angle TFT LCD screen to ensure clear display of device operation status in complex industrial environments. It is equipped with an analog resistive touch panel that supports multi touch and gesture operations, with sensitive response and durability of over 1 million times, meeting the frequent interaction needs of industrial sites. The device has a built-in 15MB user storage space and supports expanding storage capacity through SD memory cards. It is compatible with GOT2000 series software and can achieve fast reading, writing, and backup of engineering data and logs. In terms of interfaces, Ethernet, RS-232, RS-422/485, and USB host/device ports are standard, supporting multi protocol communication and collaborative control. It can simultaneously connect to devices such as PLC, barcode readers, serial printers, and is compatible with video/RGB units to achieve multimedia data transmission and device status visualization. Its protection level reaches IP67F, with dust-proof and splash proof capabilities, suitable for harsh environments such as humidity and dust. The operating temperature range is from 0 ℃ to 50 ℃, suitable for industrial scenarios such as mechanical manufacturing, packaging, and chemical industry, providing a stable and reliable human-machine interaction experience.

Technical specifcations for GT1665M-STBD

Basic display parameters

Screen size: 8.4-inch TFT color LCD display screen, high brightness, wide viewing angle design, ensuring clear display effect in complex industrial environments.

Resolution: 800 × 600 pixels (SVGA), meeting the requirements of industrial monitoring for image precision.

Display color: 65536 colors, providing rich color expression, supporting complex interfaces and animated displays.

Perspective range: 80 degrees left and right, 80 degrees up and 60 degrees down, allowing operators to clearly view screen content from multiple angles.

2、 Core functional parameters

Touch technology: adopting analog resistive touch panel, supporting multi touch and gesture operation, with sensitive response and durability of over 1 million times, suitable for high-frequency interaction needs in industrial sites.

Storage capacity: Built in 15MB user storage space, supports expansion to 57MB through SD memory card, meets large-scale data storage needs.

Protection level: IP67F standard, with dust-proof and splash proof capabilities, capable of stable operation in harsh environments such as humidity and high dust.

3、 Communication interface parameters

Ethernet interface: supports simultaneous connection of multiple devices to achieve collaborative control and data exchange.

Serial interface: Built in RS-232, RS-422/485 interfaces, compatible with multiple industrial communication protocols, can connect to devices such as PLCs and barcode readers.

USB interface: equipped with USB host and USB device ports, supporting engineering data transfer, log reading, and peripheral connection (such as mouse, keyboard).

Video/RGB unit: compatible with video signal input and RGB output, supports multimedia data transmission and device status visualization.

4、 Power supply and installation parameters

Power type: Supports DC24V or AC100~240V power supply, suitable for different industrial power environments.

Installation type: panel installation type, compact structure, external dimensions of 241 (width) × 190 (height) × 52 (depth) mm, weight 1.7kg, easy to integrate and deploy.

Working temperature: Supports working environments from 0 ℃ to 50 ℃ (also known as 0 ℃ to 45 ℃), suitable for various industrial scenarios.

5、 Extended Function Parameters

Brightness adjustment: Supports 8 levels of brightness adjustment to meet the operational needs under different lighting conditions.

Expansion interface: Reserved CF card port (B drive), supporting additional storage expansion.

Communication compatibility: Compatible with industrial network protocols such as CC Link and CC Link IE, supporting multi-channel communication.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
