MITSUBISHI GT1575-VNBD New and Original High quality

GT1575-VNBD

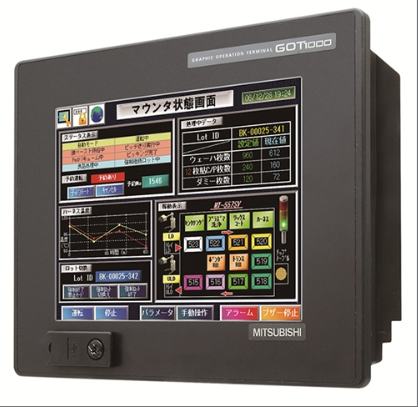

The GT1575-VNBD model is a 10.4-inch TFT color LCD screen human-machine interface device, which adopts VGA (640 × 480) resolution and 256 color display technology. The picture is clear and has high brightness and wide viewing angle characteristics, suitable for complex lighting environments in industrial sites. Its matrix resistive touch screen supports the minimum size of 16 × 16 dot matrix buttons and can withstand a touch life of over 1 million times (0.98N operation force). With 1200 touch keys per screen (30 rows × 40 columns), it can meet multitasking operation requirements. The device is equipped with 11MB of user storage space, supports USB, RS-232, and CF card expansion interfaces, compatible with GT Works3 1.17T and above software versions, and has a single tone adjustable buzzer output function. The protection level reaches IP65F (front) and IP2X (inside the panel), supporting DC24V (± 25%/-20%) wide voltage input, with a working temperature range of 0-55 ℃. It can adapt to harsh industrial scenarios such as dust and humidity, and is widely used in packaging machinery, automotive manufacturing, energy management, and other fields.

Technical specifcations for GT1575-VNBD

Display parameters

Screen size: 10.4-inch TFT color LCD screen, providing high brightness and wide viewing angle display effect.

Resolution: VGA (640 × 480), ensuring clear and delicate images.

Display color: 256 colors, meeting the basic color requirements of industrial monitoring.

Viewing angles: 45 degrees left and right, 30 degrees up and 20 degrees down, suitable for multi angle operation needs.

LCD brightness: Supports brightness adjustment function, the specific brightness value may vary due to product configuration or usage environment.

Display character count: Under 16 dot matrix standard font, it can display 40 words x 30 lines (full width); Under the 12 dot matrix standard font, it can display 55 words x 40 lines (full width).

Background light: Equipped with replaceable cold cathode fluorescent tubes and backlight off detection function, the backlight off time and screensaver time can be set.

2、 Touch parameters

Touch mode: Matrix resistive touch screen, supporting multi touch (up to 2 points simultaneously pressed).

Touch keys: Each screen supports up to 1200 touch keys (30 rows x 40 columns).

Button size: The minimum button size is 16 x 16 dots per button.

Lifespan: Under the condition of operating force below 0.98N, the touch lifespan can reach over 1 million times.

3、 Storage parameters

User memory capacity: The built-in flash memory capacity may vary due to product upgrades, with a common configuration of 11MB, used to store engineering data and operating systems.

Battery: Equipped with GT15-BAT lithium battery, with a lifespan of approximately 5 years at an ambient temperature of 25 ℃.

Extended storage: Supports CF card expansion, with a TYPEI connector shape, making it convenient for users to backup data and expand storage capacity.

4、 Interface parameters

RS-232: 1 channel, transmission speed includes 115200/57600/38400/19200/9600/4800bps, interface shape is D-sub 9-pin (male head), used for communication with connected devices or connection to personal computers.

USB: 1 channel, maximum transfer speed of 12Mbps at full speed, interface shape of USB Mini-B, used for connecting to personal computers.

Other interfaces: may also include Ethernet interfaces, RS-422/485 interfaces, etc. (specific interface configurations may vary due to product upgrades) to meet the communication needs of different devices.

5、 Power parameters

Input power supply voltage: DC24V (+25%, -20%), suitable for a wide range of voltage fluctuations.

Power consumption: Under normal working conditions, it is below 41W (1790mA/DC24V), and when the backlight is turned off, it is below 30W (1250mA/DC24V).

Impulse current: below 115A (1ms, at maximum load).

Allowable instantaneous stop time: within 10ms.

Noise tolerance: Noise voltage of 500Vp-p, noise amplitude of 1 μ s, through a noise simulator with noise frequency of 25-60Hz.

Voltage endurance: DC500V for 1 minute between the power terminal and the ground.

Insulation resistance: The DC500V between the power terminal and the ground wire should pass through an insulation resistance meter of 10M Ω or above.

6、 Structure and protection parameters

Protection structure: The front part meets the IP65F standard, and the interior of the panel meets the IP2X standard, with dust and water resistance capabilities.

Dimensions: 303 (W) × 214 (H) × 49 (D) mm.

Panel opening size: 289 (W) × 200 (H) mm.

Weight: Approximately 2.3KG (excluding installation accessories).
