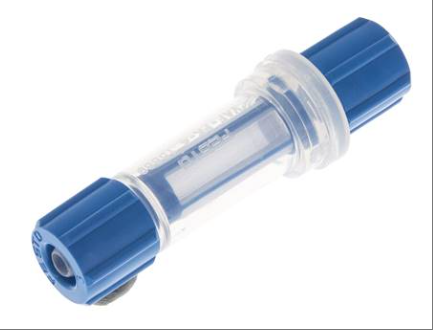

VAF-PK-4
The VAF-PK-4 model product is a high-performance vacuum filter designed specifically for vacuum systems in industrial automation. Its core parameters include: nominal diameter of 3mm, filtration grade of 50 μ m, working pressure range of -0.95 bar to 0 bar, working medium of compressed air that meets ISO 8573-1:2010 standard, and flow rate of up to 70 l/min at a vacuum degree of -0.75 bar. This product adopts a transparent shell design, which makes it easy for users to intuitively evaluate the degree of filter contamination. It has a quick twist connector (suitable for 4mm and 6mm pipes) and a PA material shell, ensuring a sturdy structure and compliance with RoHS standards. Its maximum working temperature is+40 ° C, and the installation position is flexible, which can adapt to various industrial environments. The VAF-PK-4 model product is widely used in industrial automation fields that require high-precision filtration due to its stable performance and reliable filtration effect. It effectively removes small particles and impurities, ensures the normal operation of the system, and extends equipment life.
Technical specifcations for VAF-PK-4
model: VAF-PK-4
Nominal diameter: 3mm
Filtration grade: 50 µ m
Work pressure range:- 0.95 bar to 0 bar
Working medium: Compressed air, compliant with ISO 8573-1:2010 standard
Flow rate: 70 l/min at a vacuum degree of -0.75 bar
Installation location: optional
Maximum operating temperature:+ 40°C
Environmental temperature: 0-40 ° C
Product weight: 6 grams
Installation type: Line installation
Pneumatic connection: PK-4 with socket nut
Shell material: PA
Injector pulse suitability: ≤ 8 bar
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
