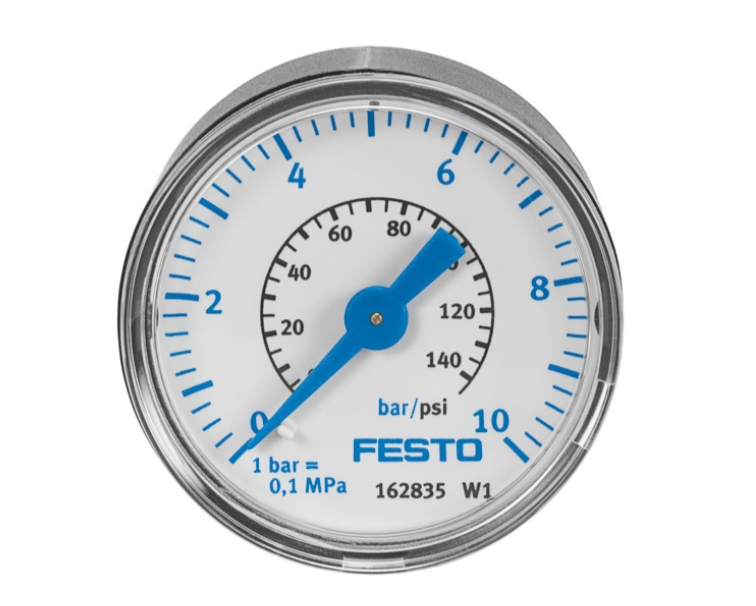

Festo MA-40-10-R1/4-EN Pressure gauge
Description
Pressure gauge MA-40-10-R1/4-EN With display unit in bar and psi. Indicating range [bar]=0 - 10 bar, Conforms to standard=EN 837-1, Nominal size of pressure gauge=40, Design structure=Bourdon-tube pressure gauge, Mounting type=Line installation
Specifications
Brand：Festo
Pneumatic connection 1：R1/4"
Working pressure：0
Product Series：MA
Technical Data
Indicating range：0 bar ... 10 bar
Indicating range：0 psi ... 145 psi
Symbol：00991463
Conforms to standard：EN 837-1
Nominal size of pressure gauge：40
Explosion protection：The information in the certificate must be observed!
Explosion protection：Zone 1 (ATEX)
Explosion protection：Zone 2 (ATEX)
Explosion protection：Zone 21 (ATEX)
Explosion protection：Zone 22 (ATEX)
Design：Bourdon tube pressure gauge
Type of mounting：In-line installation
Operating medium：Inert gases Neutral fluids
Note on operating and pilot medium：No acetylene No oxygen
Operating pressure：0 MPa ... 1 MPa
Operating pressure：0 bar ... 10 bar
Operating pressure：0 psi ... 145 psi
Alternating load factor：0.66
Measurement accuracy class：2.5
Degree of protection：IP43
Media temperature：-20 °C ... 60 °C
Ambient temperature：-20 °C ... 60 °C
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Note on materials：RoHS-compliant
Position of connection：Centred, rear side
Pneumatic connection：R1/4
Material in contact with the medium：Brass
Material screwed plug：Brass
Material housing：ABS
Material screen：PS
Housing colour：Black
Product weight：70 g
Scale：Double scale
Scale：Bar (outside scale)
Scale：psi (inner scale)
