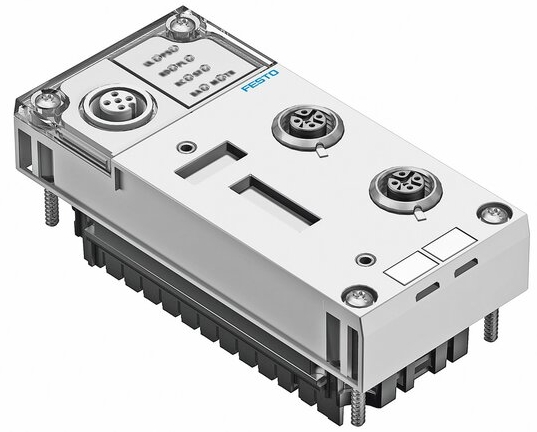

Festo CPX-FB37 2735960 Bus node
Technical Data
Dimensions W x L x H：50 mm x 107 mm x 50 mm,(Incl. linking block)
Parameterising：Systemparameter,
Dimensions W x L x H：Failsafe-Reaktion,Diagnoseverhalten,Forcen von Kanälen,Signal-Setup
Additional functions：Emergency message,Modular device profile (MDP),Acyclical data access via Fieldbus,System status can be shown from process dat,Additional diagnosis interface for control panel,Diagnose object,Compatibility mode to FB38,Variable PDO mapping
Operating element：DIL switch
Operating voltage range DC [V]：18 to 30
Intrinsic power input at operating voltage：Type 100 mA
Nominal operating voltage DC [V]：24
Corrosion resistant class KBK：1 - low corrosion stress
Bearing temperature [°C]：-20 to 70
Protection category：IP65,IP67
ambient temperature [°C]：-5 to 50
Max. address volume outputs [Byte]：128
Max. address volume inputs [Byte]：128
Report：EtherCAT
Material information：RoHs compliant
Housing material：PA reinforced
Fieldbus interface：2x Socket M12x1.4-pin, D-coded
Device specific diagnosis：Unterspannung Module,Diagnose-Speicher,Kanal- und modulorientierte Diagnose
Configuration support：ESI file
Baud rate：100 Mbit/s
LED display bus specific：Error: Communication error,
LED display bus specific：Run: Communication status,
LED display bus specific：LA X1: Network active port 1,
LED display bus specific：LA X2: Network active port 2
LED display product specific：PL: Load supply,
LED display product specific：SF: System error,
LED display product specific：M: Modify, parameterisation,
LED display product specific：PS: Electronics supply, sensor supply
