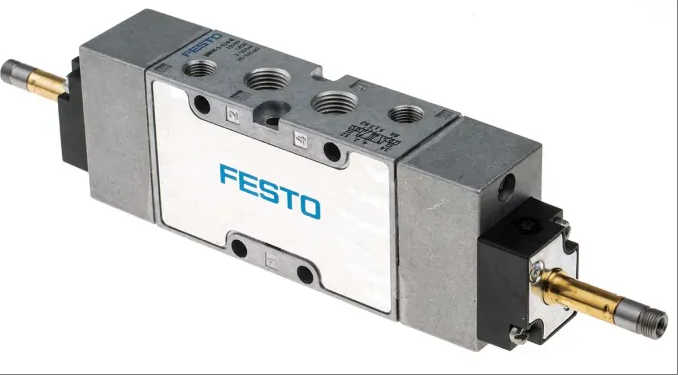

Festo JMFH-5-1/4-B New and Original High quality

JMFH-5-1/4-B

The JMFH-5-1/4-B model product is a high-performance 5/2 bistable solenoid valve designed specifically for pneumatic control in industrial automation. Its core parameters include: standard rated flow rate of 1600 l/min, working pressure range of 2 bar to 10 bar, rated size of 10 mm, piston slider design, built-in pilot control and air source, irreversible flow direction, and reverse switching time of only 14 ms. This product supports electrical drive and can be equipped with F-type or V-type electromagnetic coils. It has low power consumption characteristics and is enclosed on both sides of the housing panel. It is suitable for installing air circuit boards (supporting 2 to 10 valve positions, available in PAL or PRS forms). Its working medium is filtered compressed air (filtration grade 40 μ m), with a medium temperature range of -10 ° C to 60 ° C and an ambient temperature range of -5 ° C to 40 ° C. The pilot exhaust port is M5 specification. This model of product is widely used in pneumatic control scenarios that require high precision and fast response, such as automated production lines, robotics technology, and precision machining equipment. With its sturdy structure and reliable performance, it provides efficient and stable fluid control solutions for industrial applications.

Technical specifcations for JMFH-5-1/4-B

Specification

model: JMFH-5-1/4-B

Valve function: 5/2 bistable

Drive type: Electrical

Design structure: piston slider

Reset type: mechanical spring (some models are air springs)

performance parameter

Standard rated flow rate: 1600 l/min (some models have 1300 l/min)

Working pressure range: 2 bar to 10 bar

Pilot pressure range: 2 bar to 10 bar (some models have 3 bar to 10 bar)

Reverse switching time: 14 ms

Medium temperature range:- 10 ° C to 60 ° C

Environmental temperature range:- 5 ° C to 40 ° C

Product weight: 615 g (some models are 300 g)

Connection and installation

Pneumatic connection: Port 1 to Port 5 are all G1/4 interfaces

Pilot air source: built-in (some models are external)

Pilot exhaust port: M5 specification

Installation type: optional with through-hole on PR air circuit board

Electrical connection: via F coil (to be ordered separately)

Working medium

Medium: Compressed air (compliant with ISO 8573-1:2010 [7:4:4])

Filtration grade: 40 μ m

Lubrication requirement: Smooth compressed air (continuous use after use)

other characteristics

Hand control device: Position locked, push cover covered

Flow direction: irreversible

Protection level: IP65 (may vary depending on specific applications)

Application and advantages

Application areas: Automated production lines, robotics technology, precision machining equipment, etc

Advantages: High precision, fast response, sturdy and durable, suitable for industrial scenarios that require efficient and stable fluid control.
