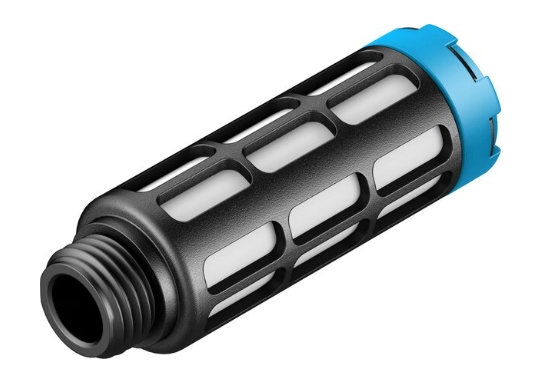

Festo U-1/4 2316 Silencer
Description
Silencer U-1/4 Assembly Position=Any, Operating pressure=0 - 10 bar, Flow rate to atmosphere=3400 l/min, Operating medium=Compressed Air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
Information
Weight：10 g / pcs
GTIN：4052568000257
Customs duty number：84879090
Manufacturer：Festo
Technical Data
Installation position：arbitrary
Flow against atmosphere [l/min]：3.300
Operating medium：Compressed air to ISO 8573-1:2010 [7:-:-]
Information about operating and control medium：Oiled operation possible
Sound pressure level [dB(A)]：76,0
ambient temperature [°C]：-10 to 70
Pneumatic connection：G1/4
Dampening insert material：PE
Material information：Copper and PTFE-free, RoHs compliant
Operating pressure [bar]：0 to 10
Find the perfect accessories to complete your product assembly
QS-1/4-8
QSL-1/4-8
MSSD-EB
QST-8
Our Services:
1、All our products are new and original, and of good quality.
2、Our prices are very competitive.
3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1)100% brand New and Original Factory Seal!
2)Warranty: 1 year
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3-7 days after payment
5) All the goods will be tested before shipment.
