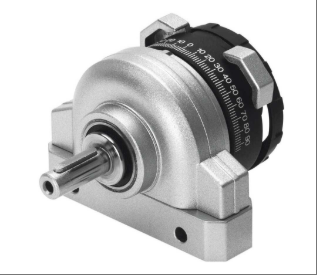

DSR-32-180-P 11912
The DSR-32-180-P 11912 model product is a high-precision blade type swing cylinder designed specifically for the industrial automation field. Its core features include: a swing angle range of 0 ° to 180 °, supporting large angle rotation; Theoretical torque of 10 Nm (at 6 bar) ensures strong power output; No position detection design, simplifying the structure and improving reliability; The size specification is 32, suitable for various installation needs. This product is widely used in mechanical manufacturing, packaging, printing, and robot automation scenarios. With its efficient, stable, and durable performance, it has become a key component for achieving precise angle control in industrial automation systems.
Technical specifcations for DSR-32-180-P 11912
Specification
model: DSR-32-180-P
Product Code: 11912
Cylinder diameter: 32 mm
Swing angle: 0 ° to 180 °
Installation method: with through-hole
performance parameter
Working pressure range: 1.5 bar to 8 bar
Theoretical torque at 6 bar: 10 Nm
Maximum swing frequency: 3 Hz (at 6 bar)
Working medium: Compressed air, compliant with ISO 8573-1:2010 standard
Environmental temperature range:- 10 ° C to 60 ° C
Structure and Materials
Structural features: Blade style design
Buffer form: Elastic buffer rings/plates at both ends
Drive shaft material: Nickel plated steel
Sealing material: NBR
Size and weight
Product weight: 1.3 kg (or 1300 g, slightly different from different sources)
Installation method: Optional installation at any location
Application and advantages
Application areas: mechanical manufacturing, packaging, printing, electronic assembly, and robot automation, etc
Advantages:
High precision angle control to meet the requirements of precision automation
Double acting design ensures stability and efficiency of bidirectional motion
Modular structure, supporting multiple attachment extensions
This model of product is widely used in industrial automation scenarios that require precise angle control due to its high torque output, large swing angle range, and compact design.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
