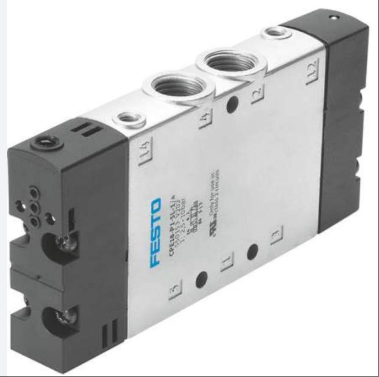

CPE18-P1-5LS-1/4 550154
The CPE18-P1-5LS-1/4 550154 model product is a high-performance solenoid valve designed specifically for pneumatic control in the field of industrial automation. Its core features include: compact design, lightweight structure, and flexible installation; 1/4 inch interface, compatible with standard pneumatic piping systems; Fast response time, with a closing time of 44 ms and an opening time of 25 ms, ensuring efficient airflow control; Wide working temperature range- 5 ° C to 50 ° C, suitable for various industrial environments; High work pressure range- 0.9 bar to 10 bar, meeting different application requirements. This product is widely used in automation equipment that requires precise airflow control, such as mechanical processing, packaging, material handling, and robot systems. With its reliability and efficiency, it has become a key component of industrial automation pneumatic control.
Technical specifcations for CPE18-P1-5LS-1/4 550154
Specification
model: CPE18-P1-5LS-1/4
Product Code: 550154
Valve function: Two position five way, single stable state
Gas interface: G1/4
Drive mode: electronic control
performance parameter
Standard rated flow rate: 1500 l/min (standardized according to DIN 1343)
Work pressure range:- 0.9 bar to 10 bar
Working temperature range:- 5 ° C to 50 ° C
Response time:
Open time: 25 ms
Closing time: 44 ms
Electrical parameters
Power supply voltage: 24 V DC (other voltages require special customization)
Power consumption: Low power design, specific values need to refer to detailed data sheet
Structure and Materials
Valve body material: Aluminum alloy
Sealing material: NBR (nitrile rubber)
Protection level: IP65 (compliant with DIN EN 60529 standard)
Application and advantages
Application areas: Automation equipment such as mechanical processing, packaging, material handling, robot systems, etc
Advantages:
Quick response ensures efficient airflow control
Compact design, saving installation space
High reliability, suitable for harsh industrial environments
This model of product is widely used in industrial automation scenarios that require precise airflow control due to its high flow rate, fast response, and compact design.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
