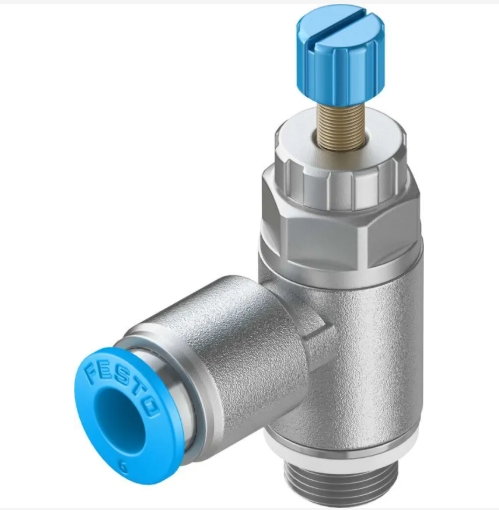

Festo GRLA-1/8-QS-6-RS-D 197581 One-way flow control valve Brand new

Festo GRLA-1/8-QS-6-RS-D 197581 One-way flow control valve

Description

Introducing the GRLA series from FESTO. This range of pneumatic fittings feature exhaust flow regulators, each with an integrated QS push-in fitting. The series includes valves with one-way flow control function for exhaust air.

Information

• This range by FESTO includes valves with one-way flow control function for exhaust air. The one-way flow control valve regulates the piston speed of pneumatic drivers during advance and return strokes
• The QS push-in fittings and captive seals paired with the robust, metal design enables a reliable and efficient installation that can be rotated or swivelled through a 360° axis
• Simple and fast mounting with QS fittings
• The valves are operated with a screwdriver (slot
• Wide operating temperatures
• Threaded and tube connection type options can be found within the GRLA series
• Depending on the choice of valve from the series a precise setting can be obtained, which range from slow, medium or fast piston movements
• Manual actuation type

Technical Data

Valve function：Exhaust air flow control non-return function

Pneumatic connection 1：QS-6

Pneumatic connection 2：G1/8

Adjusting element：Knurled screw

Type of mounting：Screw-in

Standard nominal flow rate in flow control direction：185 l/min

Standard nominal flow rate in non-return direction：160 l/min ... 240 l/min

Operating pressure：0.2 bar ... 10 bar

Ambient temperature：-10 °C ... 60 °C

Maritime classification：See certificate

Mounting position：Any

Symbol：00991452

Operating pressure for entire temperature range：0.2 bar ... 10 bar

Standard flow rate in flow control direction 6 -> 0 bar：370 l/min

Standard flow rate in non-return direction at 6 -> 0 bar：330 l/min ... 390 l/min

Operating medium：Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media：Operation with oil lubrication possible (required for further use)

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Cleanroom class：Class 4 according to ISO 14644-1

Temperature of medium：-10 °C ... 60 °C

Nominal tightening torque：3 Nm

Product weight：23 g

Material of screwed plug：Wrought aluminum alloy

Note on materials：RoHS-compliant

Seals material：NBR

Releasing ring material：POM

Material of adjusting screw：High-alloy stainless steel

Swivel joint material：Die-cast zinc  Chromated
