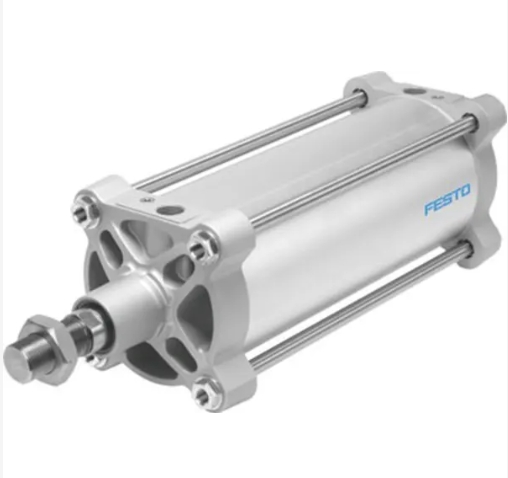

Festo DSBG-200-100-PPVA-N3 ISO cylinder\
Description
Sturdy tie rod design
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Comprehensive range of mounting accessories for just about every type of installation
For position sensing
Information
• Standards-based cylinders to ISO 15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA 24 562, NF E 49 003.1 and UNI 10290)
• Sturdy tie rod design
• Double-acting
• For contactless position sensing
• An extensive range of accessories enables the cylinders to be installed virtually anywhere
• Choice of two cushioning types:
– Elastic cushioning: elastic cushioning rings/pads at both ends
– PPV cushioning: pneumatic cushioning, adjustable at both ends
• Excellent flexibility thanks to the wide range of variants
Technical Data
Stroke：100 mm
Piston diameter：200 mm
Piston rod thread： M36x2
Cushioning：Pneumatic cushioning, adjustable at both ends
Mounting position：optional
Conforms to standard： ISO 15552
Piston-rod end：Male thread
Design：Piston Piston rod Tie rod Cylinder barrel
Position detection：Via proximity switch
Symbol：00991235
Variants：Piston rod at one end
Operating pressure：0.06 MPa ... 1 MPa
Operating pressure：0.6 bar ... 10 bar
Mode of operation：Double-acting
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC：2 - Moderate corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Ambient temperature：-20 °C ... 80 °C
Impact energy in end positions：4.8 J
Cushioning length：48 mm
Cushioning length, advance stroke：48 mm
Cushioning length, return stroke：48 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke：18096 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke：18850 N
Moving mass for 0 mm stroke：6318 g
Additional moving mass per 10 mm stroke：5348 g
Product weight：17953 g
Basic weight for 0 mm stroke：15493 g
Additional weight per 10 mm stroke：246 g
Type of mounting：Either:With through-hole With accessories
Pneumatic connection：G3/4
Note on materials：RoHS-compliant
Material cover：Cast aluminium, coated
Material dynamic seals：NBR
Material piston：Cast aluminium
Material piston rod：High-alloy steel
Material piston rod wiper：NBR
Buffer seal material：TPE-U(PU)
Cushioning boss material：POM
Material cylinder barrel：Smooth-anodised wrought aluminium alloy
Material nut：Galvanised steel
Material bearing：Metal polymer compound
Material collar nut：Galvanised steel
Material tie rod：High-alloy steel
Find the perfect accessories to complete your product assembly
DASP-M4-160-A
NPFC-R-G34-G12-MF
SG-M36X2
SNG-200
