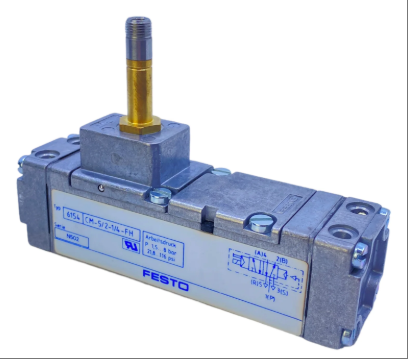

CM-5/2-1/4-FH 6154
The Festo brand CM-5/2-1/4-FH 6154 model product is a high-performance solenoid valve designed specifically for the industrial automation field. This product adopts a 5/2 bistable single control structure, equipped with G1/4 inch air ports, supports direct installation on the air circuit board, and has flexible installation methods (such as card valve installation). Its driving methods include pneumatic driving (pressure range of 0.5 mbar to 2.5 bar), pressure driving (0.7 to 10 bar), and vacuum driving (-0.2 to -0.95 bar), meeting the needs of different working conditions. This model of solenoid valve achieves precise control through MKC and MKF electromagnetic drivers, integrates multiple driver accessories, and has high reliability and durability. It is widely used in automation equipment in industries such as machinery, electronics, packaging, and printing, and is the core component of pneumatic control systems.
Technical specifcations for CM-5/2-1/4-FH 6154
PRODUCT MODEL
model: CM-5/2-1/4-FH 6154
Drive mode
Pneumatic drive:
Pressure range: 0.5 mbar to 2.5 bar
Driver type: VE and LSK amplifier drivers
Gas interface: Directly driven by LCR-M 20x1-1/8 gas (G 1/8 pilot port)
Pressure driven:
Pressure range: 0.7 bar to 10 bar
Driver type: UV adjustable pressure reducing valve
Vacuum drive:
Pressure range:- 0.2 bar to -0.95 bar
Driver type: VUV vacuum generator
Electromagnetic drive
Drive type: MKC, MKF electromagnetic drive
Installation method
The cartridge valve is installed on the base and supports multiple base options:
Single base CAS (air port on the side)
Single base CAU (air outlet at the bottom)
Base CAB (for installation of air circuit board)
End plate assembly CEPB (for installation of air circuit boards, including 2 end plates and accessories)
Attachments and separators
CSC and NSC isolation plates, used to form pressure zones
CZB middle plate, used for installing air circuit boards (2 sizes)
End plate CEP, used for installing air circuit boards
Sealing and Materials
Sealing material: NBR (nitrile rubber)
Shell material: die cast aluminum
other characteristics
Integrate two different driver accessories into a single valve
Support CPM-1/4-FH and CPM-1/4-CH electromagnetic coil boards with manual control devices driven by MSFG/MSFW
CPL-1/4 and CPC-1/4 cover plates, used for pneumatic drive and installation of various drive accessories
Application scenarios:
This model of product is widely used in automation equipment in industries such as machinery, electronics, packaging, and printing. It is a core component in pneumatic control systems and can efficiently complete pneumatic control tasks.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
