DSBC-63-550-PPVA-N3
The Festo brand DSBC-63-550-PPVA-N3 model product is a high-performance double acting standard cylinder designed specifically for the industrial automation field. Its cylinder diameter is 63 mm, with a stroke of 550 mm. It adopts a smooth anodized refined aluminum alloy cylinder barrel, matched with a high alloy steel piston rod (surface plated with hard chromium treatment) to ensure high strength and corrosion resistance. The cylinder is equipped with an adjustable pneumatic buffer system at both ends, effectively reducing impact and noise, and extending its service life. The piston seal is made of TPE-U (polyurethane) material, ensuring the reliability of bidirectional sealing while reducing frictional resistance. This model complies with the ISO 15552 standard, with a working pressure range of 0.6 bar to 12 bar. The working medium is compressed air that complies with ISO 8573-1:2010 [7:4:4] and supports lubrication medium operation. The product has moderate corrosion resistance (CRC level 2) and is suitable for an ambient temperature range of -20 ° C to 80 ° C. It is suitable for automated production lines in multiple industries such as machinery, electronics, packaging, printing, plastics, and robots, and can efficiently complete linear reciprocating motion tasks.
Technical specifcations for DSBC-63-550-PPVA-N3
model: DSBC-63-550-PPVA-N3
Cylinder specifications
Cylinder diameter: 63 mm
Travel distance: 550 mm
Working pressure range: 0.6 bar to 12 bar (or 0.04 MPa to 1.2 MPa)
Working temperature range:- 20 ° C to 80 ° C
Force and load
Theoretical force at 6 bar (forward stroke): 1870 N
Theoretical force at 6 bar (return stroke): 1682 N
Buffer form
Buffer type: PPVA (with adjustable pneumatic buffers at both ends)
Installation and guidance
Installation method: Installed through internal threads, supporting multiple installation positions
Guidance method: piston rod guidance to ensure motion stability
Sealing and Materials
Sealing system:
Piston seal material: TPE-U (polyurethane)
Material of piston rod seal oil scraper: TPE-U (polyurethane)
Buffer sealing material: TPE-U (polyurethane)
Material Science:
Cylinder material: Smooth anodized refined aluminum alloy
Piston material: refined aluminum alloy
Piston rod material: High alloy steel (surface plated with hard chromium treatment)
Nut material: galvanized steel
Bearing material: POM (polyoxymethylene)
Position detection
Position sensing: detected through proximity switch (external thread design)
other characteristics
Working mode: Dual action
Working medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4]
Corrosion resistance level: CRC 2 (moderate corrosion resistance)
Mobile mass: 430 g (at 0 mm stroke)
Additional mass factor per 10 mm stroke: 62 g
Applicable range of ambient temperature:- 20 ° C to 80 ° C
Impact energy at the end: 1.3 J
Buffer length: 22 mm
Application scenarios
Suitable for automation equipment that requires high precision, long stroke, and corrosion resistance, such as machinery, electronics, packaging, printing, plastics, and robotics industries.
Product advantages:
High strength and corrosion resistance: High alloy steel piston rods and refined aluminum alloy cylinder barrels are used to ensure long-term stable operation.
Low friction and sealing performance: TPE-U sealing material reduces frictional resistance and improves sealing performance.
Modular design: supports multiple attachments and options, flexible configuration, and meets different application needs.
This model of product is widely used in the field of industrial automation and can efficiently complete linear reciprocating motion tasks.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
More Products In Stock:
| DGPL-40/50-KF-CT ET 760716 | DSBC-125-1165-D3-PPVA-N3 | DSBG-125-300-D3-PPVA-N3 | DFPD-480-RP-90-RD-F1012 | DSBG-V-200-300-PPVA-N3 |
| FESTO LFP-D-MINI-40M 363665 | FESTO QSM-G1/8-6-I 186267 | FESTO UC-1/8 161419 | FESTO PUN-H-6X1-BL 197384 | FESTO GRLA-1/8-QS-6-D 193144 |
| FESTO 10P-10-8A-MP-R-B-8M+R-E | DNC-40-400-PPV-A | FENG-40-400 FESTO | DNC-32-250-PPV-A | FENG-32-2500 |
| FENG-40-200-KF 34502 | DGST-10-10-PA | DSBC-32-80-PPVA-N | MZT7-03VPS-KP0 | VRPA-CM-Q6-E |
| LRMA-QS-6 153496 | 156529 ADVU-25-50-P-A | MT2H-5/2-4,0-L-S-VI-B 159452 | MSB6-1/4:J2:W1 | MS6-LFR-1/4-D7-ERV-AS |
| MS6-LWS-1/4-U-V | FEN-25-160-KF 33483 | PUN-8X1,25-BL 159666 | PUN-H-8X1,25-BL | DGC-12-225-G-YSR-A |
| VN-30-L-T6-PI5-VI6-RO2 526132 | DGC-K-32-550-PPV-A-GK | DSBC-63-550-PPVA-N3 | DNC-63-550-PPV-A | CM-5/2-1/4-FH 6154 |

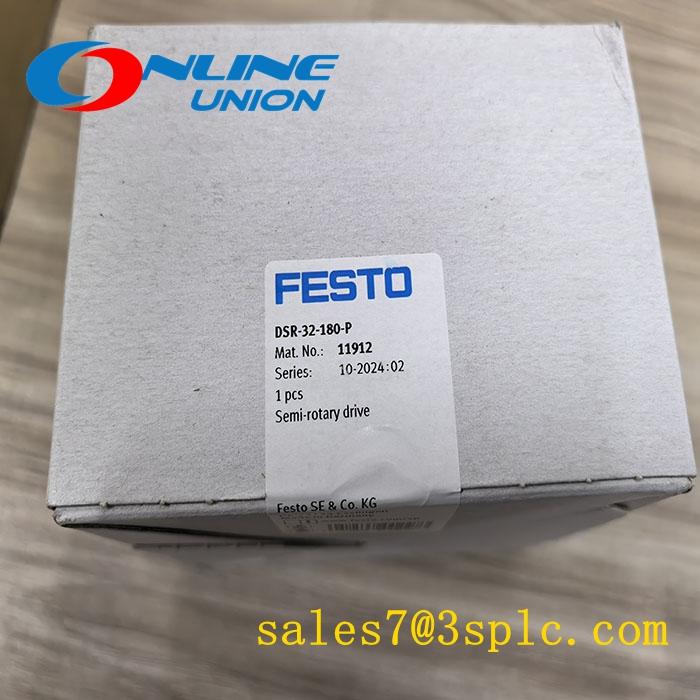

| DSBC-80-200-PPVA-N3 1383340 | DGC-K-25-2470-PPV-A-GK-D2 | SLM-32-550-KF-A-G-CV-CH-E | DHDS-16-A | DSR-32-180-P 11912 |
