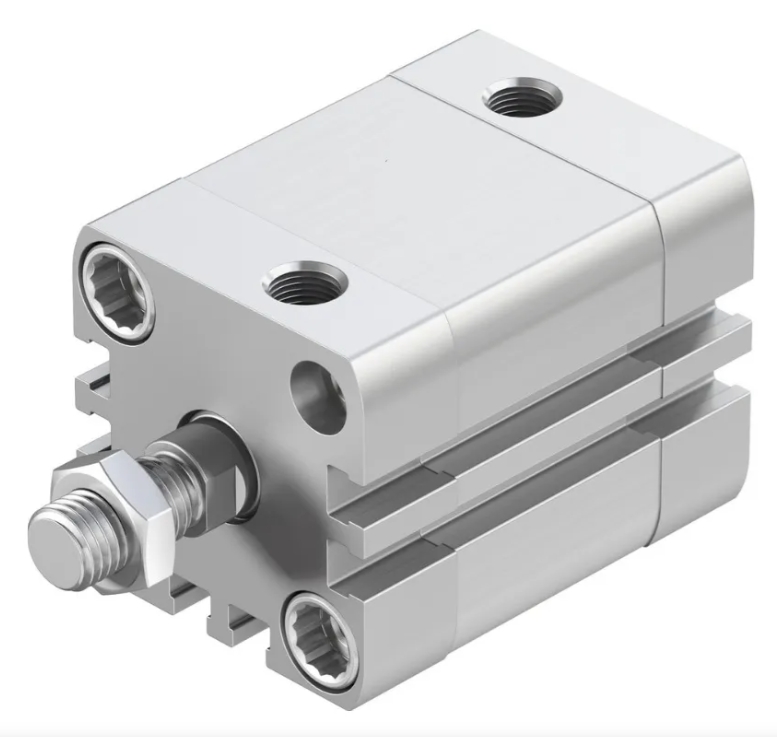

Festo ADN-100-145-A-P-A Compact cylinder Brand new

Festo ADN-100-145-A-P-A

Description

Festo Compact Pneumatic Cylinder ADN-100-145-APA Male

Product Features:

Similar Pneumatic Cylinder ADN Festo Series ADN-100-145-APA

Bore: 100 mm

Stroke: 145 mm

Standard: ISO 21287

Drive: Double Acting

Rod: Chromed (Ideal for Corrosion Protection)

Fluid: Compressed Air

Cushioning: Elastic damper rings/plates on both sides

Connection Port: G 1/4

Actuation Speed: Minimum: 30 mm/s - Maximum: 800 mm/s

Working Pressure: Minimum: 1 Bar / Maximum: 10 Bar

Working Temperature: Minimum: 0 Degrees / Maximum: 80 Degrees

Material Composition: Stainless Steel Tube, Chromed Steel Rod and PTFE Seals

Piston: Magnetic, Ideal for Use Magnetic Sensors for Detecting Pneumatic Cylinder Actuation

Thread Model: Male

Rod Thread: M16 X 1.5

Rod Diameter: 25mm

Total Length of Recessed Cylinder (Closed Rod): 249 mm

Total Length of Advanced Cylinder (Open Rod): 394 mm

Minimum Force that the Cylinder Exerts at a Pressure of 2 Bar: 160.2 Kgf

Maximum Force that the Cylinder Exerts at a Pressure of 10 Bar: 800.9 Kgf

Our Services:

1、All our products are new and original, and of good quality.

2、Our prices are very competitive.

3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
