DGC-K-32-550-PPV-A-GK

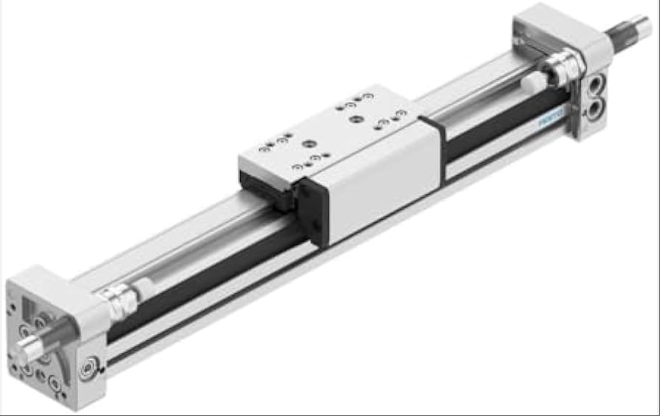

The Festo brand DGC-K-32-550-PPV-A-GK model product is a high-performance rodless cylinder designed specifically for the industrial automation field. This product adopts a double acting working mode, with a cylinder diameter of 32mm and a standard stroke of 550mm. It has a high-precision, long stroke, leak free sealing system to ensure stable and reliable motion performance. Its design features include the ability to directly install loads on the slider, compact installation length and stroke ratio, and support for three buffering forms: elastic buffering, pneumatic buffering, and hydraulic buffering, meeting the needs of different application scenarios. This model of product achieves position detection through proximity switches and is suitable for automated production lines in multiple industries such as machinery, electronics, packaging, printing, plastics, and robots. It can efficiently complete process tasks such as adsorption and handling.
Technical specifcations for DGC-K-32-550-PPV-A-GK
model: DGC-K-32-550-PPV-A-GK
Cylinder specifications
Cylinder diameter: 32 mm
Travel distance: 550 mm
Working pressure range: 2 bar to 8 bar (or 0.6 bar to 10 bar, depending on specific configuration)
Working temperature range:- 10 ° C to+80 ° C
Force and load
Theoretical force at 6 bar (process/recovery stroke): 483 N
Maximum load: 483 N (theoretical value, specific load needs to be adjusted according to application)
Buffer form
Buffer type: PPV (with adjustable air buffers at both ends)
Installation and guidance
Installation type: Supports multiple installation methods (such as tripod installation, flange installation, etc., please refer to the attached options for details)
Guidance method: Circular ball bearing guidance (high-precision, low friction)
Sealing and Materials
Sealing system: long stroke, unlimited, almost no leakage
Material Science:
Shell: Aluminum (anodized treatment)
Sealing element: NBR (nitrile rubber) or TPE-U (polyurethane)
Piston rod: High alloy steel (corrosion-resistant)
Position detection
Position sensing: Supports proximity switch detection (Type A, optional proximity switch models such as SMT-8M series)
other characteristics
Working mode: Dual action
Mobile mass: 180 g (at 0 mm stroke)
Additional mass factor per 10 mm stroke: 36 g
Corrosion resistance level: CRC 2 (compliant with Festo 940 070 standard)
Protection level: meets explosion-proof requirements (such as ATEX class gas II 2G, dust II 2D)
Application scenarios
Suitable for automation equipment that requires high precision, long travel, and no leakage, such as assembly lines, packaging machinery, electronic/semiconductor handling modules, etc.
Product advantages:
High precision: Guided by circular ball bearings, ensuring low friction and high stability.
Long travel: The maximum travel can reach 8500 mm, meeting various application needs.
Leak free: Sealed system design reduces maintenance costs.
Modular design: supports multiple attachments and options for flexible configuration.
This model of product is widely used in the field of industrial automation and can efficiently complete process tasks such as adsorption, handling, and positioning.
