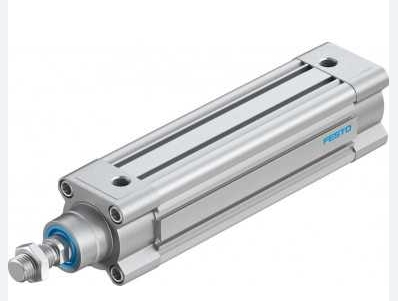

FESTO DSBC-50-150-D3-PPSA-N3 ISO cylinder
ISO cylinder DSBC-50-150-D3-PPSA-N3 with self-adjusting pneumatic end positioncushioning Stroke=150 mm, Piston diameter=50 mm, Piston rod thread=M16x1,5.Cushioning=PpS: Self-adjusting pneumatic end-position cushioning, Assemblyposition=Any.
Technical Data：
Manufacturer Nr.: DSBC-50-150-D3-PPSA-N3
Manufacturer: Festo
Stroke：150 mm
Piston diameter：50 mm
Piston rod thread：M16x1.5
Cushioning：Self-adjusting pneumatic end-position cushioning
Mounting position：optional
Conforms to standard：ISO 15552
Piston-rod end：Male thread
Design：Piston
Piston rod
Profile barrel
Position detection：Via proximity switch
Symbol：00992970
Variants：Piston rod at one end
Operating pressure：0.04 MPa ... 1.2 MPa
Operating pressure：0.4 bar ... 12 bar
Mode of operation：Double-acting
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC：2 - Moderate corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Ambient temperature：-20 °C ... 80 °C
Impact energy in end positions：1 J
Cushioning length：22 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke：990 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke：1178 N
Moving mass：740 g
Moving mass for 0 mm stroke：365 g
Additional moving mass per 10 mm stroke：25 g
Product weight：2386 g
Basic weight for 0 mm stroke：1216 g
Additional weight per 10 mm stroke：78 g
Pneumatic connection：G1/4
Note on materials：RoHS-compliant
Material cover：Die-cast aluminium, coated
Material piston seal：TPE-U(PU)
Material piston：Wrought aluminium alloy
Material piston rod：High-alloy steel
Material piston rod wiper：TPE-U(PU)
Buffer seal material：TPE-U(PU)
Cushioning boss material：POM
Material cylinder barrel：Smooth-anodised wrought aluminium alloy：
Material nut：Galvanised steel
Material rod wiper：TPE-E
Material bearing：Metal polymer compound
Material collar screws：Galvanised steel
