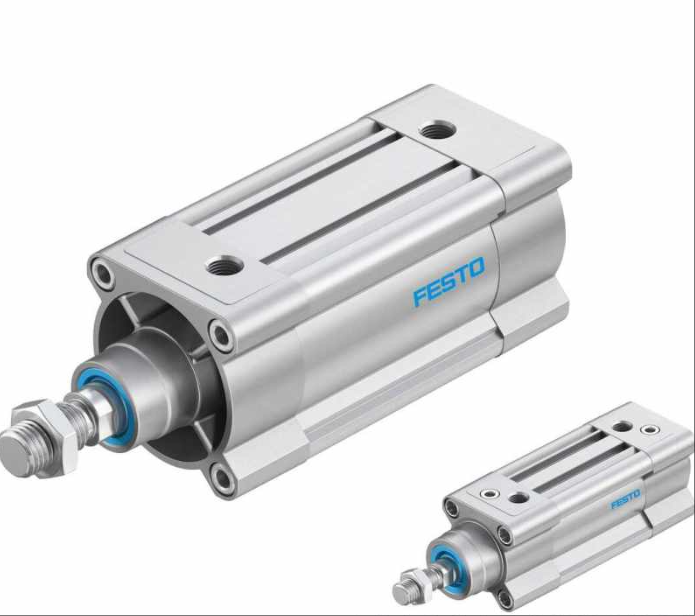

DSBC-125-1165-D3-PPVA-N3
The Festo brand DSBC-125-1165-D3-PPVA-N3 is a high-performance standard cylinder designed specifically for the industrial automation field. This product complies with the ISO 15552 standard and has a dual action working mode. The piston diameter is 125mm and the stroke length is 1165mm, providing stable and powerful linear motion output. It adopts pneumatic buffering technology, with adjustable buffering at both ends, effectively reducing impact and vibration, and extending equipment life. This model has anti-corrosion protection characteristics, adapts to harsh industrial environments, has a wide working temperature range, and ensures stable operation under extreme conditions. In addition, the product supports flexible installation and can be paired with various accessories (such as joint bearings, double earrings, etc.) to meet the needs of different application scenarios. The DSBC series cylinders are known for their high reliability, long lifespan, and low maintenance costs, making them an ideal choice for improving the automation efficiency of industrial equipment.
Technical specifcations for DSBC-125-1165-D3-PPVA-N3
model: DSBC-125-1165-D3-PPVA-N3
Type: Standard double acting cylinder
structure parameters
Piston diameter: 125 mm
Travel length: 1165 mm
Buffer method: Pneumatic buffer (adjustable at both ends)
Installation method: Complies with ISO 15552 standard and supports multiple installation forms
performance parameter
Working pressure range: 0.6 bar to 10 bar
Theoretical force (at 6 bar):
Forward travel: approximately 7363 N
Return journey: approximately 11310 N
Working temperature range:- 20 ° C to+80 ° C (standard environment)
Corrosion resistance level: CRC 2 (moderate corrosion resistance)
Material and Protection
Piston rod material: hard chrome plated, wear-resistant
Sealing material: TPE-U (polyurethane elastomer)
Protection level: IP65 (dustproof and waterproof)
Interface and attachments
Gas source interface: internal thread (specific specifications need to refer to the product manual)
Attachment support: Can be paired with double earrings, joint bearings, self centering connectors, etc
Certification and Standards
Compliant with ISO 15552 and ATEX explosion-proof standards (gas II 2G, dust II 2D)
CE certification, compliant with RoHS directive
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
