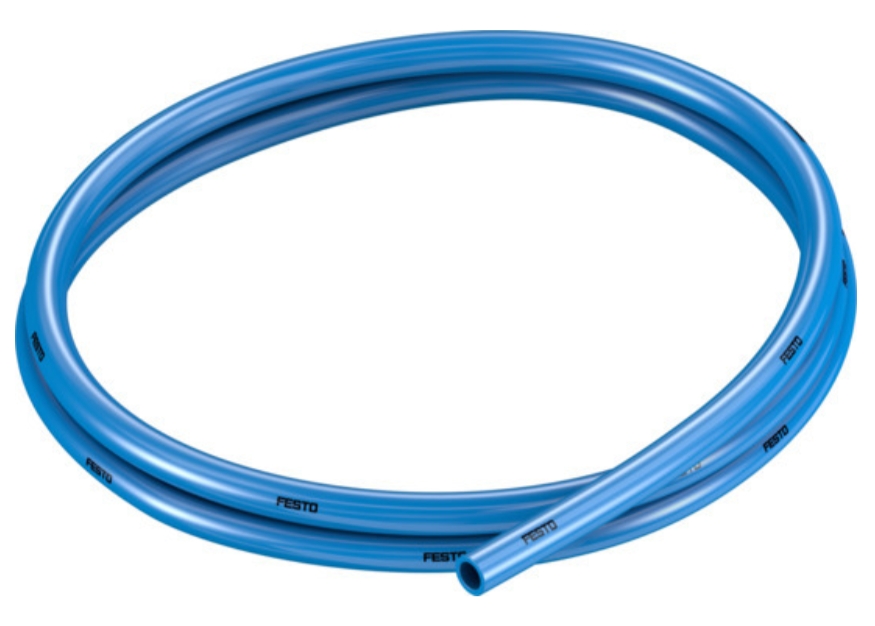

Festo PUN-8X1,25-BL Plastic tubing
Description
The plastic tubing PUN and PUN-DUO is characterised by maximum flexibility in standard applications and provides a very wide range of combinations.
Plastic tubing PUN-8X1,25-BL, 159666 is a premium quality product from Festo. SKSALES.STORE is a well-known ecommerce platform for qualitative range of . All Plastic tubing PUN-8X1,25-BL, 159666 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Plastic tubing PUN-8X1,25-BL, 159666 are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Festo products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Festo .
Specifications
Outside diameter：8 mm
Inside diameter ：5.7 mm
Temperature-dependent operating pressure：-0.95 bar – 10 bar
Ambient temperature：-35℃ – 60℃
Technical Data
Outside diameter：8 mm
Bending radius relevant for flow rate：37 mm
Inside diameter：5.7 mm
Min. bending radius：24 mm
Application note：TPE-U Ester based
Application note：The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters.
Application note：Otherwise the plastic tubing may get damaged.
Tubing characteristics：Suitability for energy chains
Operating pressure for entire temperature range： -0.095 MPa ... 0.7 MPa
Operating pressure for entire temperature range： -0.95 bar ... 7 bar
Operating pressure for entire temperature range： -13.775 psi ... 101.5 psi
Temperature-dependent operating pressure： -0.095 MPa ... 1 MPa
Temperature-dependent operating pressure： -0.95 bar ... 10 bar
Temperature-dependent operating pressure： -13.775 psi ... 145 psi
Certification：German Technical Control Board (TÜV)
Certificate issuing authority： B 013277 0506 00
Operating medium：Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test：UL94 HB
LABS (PWIS) conformity： VDMA24364-B2-L
Ambient temperature： -35 °C ... 60 °C
Product weight by length： 0.0302 kg/m
Pneumatic connection：For plug connection outside diameter 8 mm
Pneumatic connection：For barbed fitting, inside diameter 6 mm, with union nut
Pneumatic connection：For barbed fitting, inside diameter 6 mm
Color：Blue
Shore hardness：D 52 +/-3
Note on materials：RoHS-compliant
Material of pneumatic tubing：TPE-U(PU)
