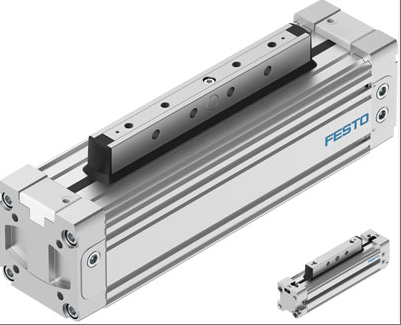

DGC-K-25-2470-PPV-A-GK-D2
The DGC-K-25-2470-PPV-A-GK-D2 model product is a high-performance rodless cylinder designed specifically for industrial automation. It has a cylinder diameter of 25 millimeters and a stroke of up to 2470 millimeters, supporting long-distance linear motion and suitable for scenarios such as mechanical manufacturing, electronic assembly, packaging, and robot automation; This product adopts a dual action working mode and is equipped with a two end adjustable pneumatic buffer system (PPV), effectively reducing impact and noise, and extending service life; Its corrosion resistance level is CRC 1, the working temperature range is -10 ° C to+60 ° C, and it meets ATEX explosion-proof standards (II 2G Ex h IIC T4 Gb and II 3D Ex h IIIC T120 ° C Dc), and can operate safely in gas and dust environments; Modular design supports multiple accessory extensions, combining high precision, low friction, and high efficiency, making it a stable and reliable linear motion actuator in industrial automation systems.
Technical specifcations for DGC-K-25-2470-PPV-A-GK-D2
Specification
Cylinder diameter: 25 mm
Travel distance: 2470 mm
Assembly method: Install at any position
Piston diameter: 25 mm
Gas source port location: on both sides
performance parameter
Working pressure range: 2 bar to 8 bar
Working mode: Dual action
Buffer type: Adjustable Gas Buffer (PPV) at both ends
Buffer length: 18 mm (theoretical force return stroke of 295 N at 6 bar)
Materials and Protection
Corrosion resistance level: CRC 1 (low corrosion impact)
Environmental temperature range:- 10 ° C to+60 ° C
Explosion proof performance:
Gas explosion-proof: ATEX II 2G Ex h IIC T4 Gb X
Dust Explosion proof: ATEX II 3D Ex h IIIC T120 ° C Dc X
Physical parameters
Working medium: Compressed air, compliant with ISO 8573-1:2010 [7: -: -]
Sealing material: NBR / TPE-U（PU）
Cover material: die cast aluminum
Lubrication requirements: Continuous lubrication is required after using lubricating media for work
Certification and Compliance
CE certification: Complies with the EU Explosion proof Directive (ATEX)
RoHS compliance: meets the requirements of environmentally friendly materials
Application and advantages
Application areas: Suitable for automation equipment that requires long stroke and high-precision linear motion, such as packaging machinery, printing equipment, electronic assembly lines, etc.
Advantages: Modular design, support for extension of accessories such as proximity switches, strong adaptability, stable and reliable operation.
This model of product meets the stringent requirements for linear motion actuators in industrial automation with its high efficiency, stability, and safety.
