Festo SLM-32-550-KF-A-G-CV-CH-E New and Original High quality

SLM-32-550-KF-A-G-CV-CH-E

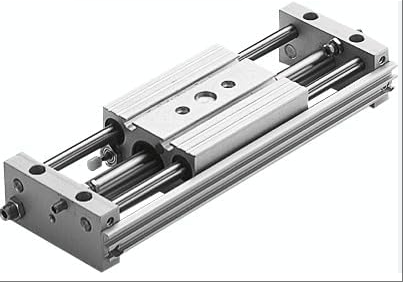

The SLM-32-550-KF-A-G-CV-CH-E model product is a high-precision rodless cylinder designed specifically for long stroke linear motion in industrial automation. Its core features include a cylinder diameter of 32 millimeters, a stroke of 550 millimeters, and the use of circulating ball bearings (KF) to ensure stable operation under high loads; The dual action driving mode combined with self-adjusting hydraulic buffer (CV/CH) effectively reduces impact and vibration, and improves equipment life; The non-contact position sensing (A) and stop sleeve (E) design achieve precise positioning and safety protection. This product supports modular combination and optional installation of guide rails and sensor slot protection accessories to meet complex working conditions. With its anti torsion function and high load capacity, SLM-32-550-KF-A-G-CV-CH-E is widely used in the fields of mechanical processing, packaging, logistics, and robot automation, and is an efficient and reliable linear drive solution.

Technical specifcations for SLM-32-550-KF-A-G-CV-CH-E

Specification

Cylinder diameter: 32 mm

Travel distance: 550 mm

Assembly method: Supports installation at any position

Guidance type: Circular Ball Bearing Guidance (KF)

Drive mode: double acting

performance parameter

Working pressure range: 2 bar to 8 bar

Theoretical force:

Return journey: 295 N (at 6 bar)

Forward travel: 295 N (at 6 bar)

Buffer system:

Self regulating hydraulic buffer (CV)

Stop shaft sleeve buffer (CH)

Mobile quality:

At 0 mm stroke: 180 g

Additional mass per 10 mm stroke: 36 g

Buffer length: 18 mm (adjustable at both ends)

Materials and Protection

Corrosion resistance level: CRC 2 (moderate corrosion resistance)

Environmental temperature range:- 10 ° C to+60 ° C

Sealing material: NBR / TPE-U（PU）

Protection level: Compliant with IP66 standard

Modular design

Position sensing: Non contact position sensing (A)

Stop device: Stop shaft sleeve (E)

Attachment support: Optional installation rails, sensor slot protection accessories, etc

Application and advantages

Application areas: mechanical processing, packaging, logistics, robot automation, and other scenarios that require long-distance linear motion.

Advantages:

High precision positioning, anti torsion function

Modular design, supporting multiple attachment extensions

Self regulating hydraulic buffer reduces impact and vibration

Environmental adaptability

Working medium: filtered compressed air, lubricated or unlubricated

Corrosion resistance level: meets Festo standards and is suitable for industrial environments

This model of product is widely used in automation equipment that requires long stroke linear motion, such as mechanical processing, packaging, logistics, and robot automation fields, due to its high precision, high load capacity, and modular design.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
