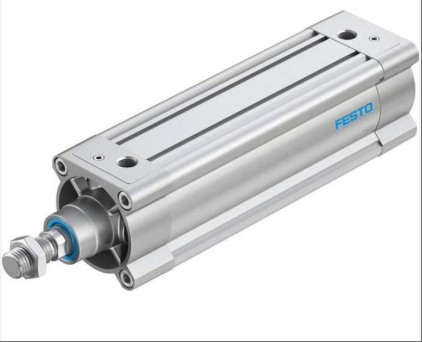

Festo DSBC-80-200-PPVA-N3 1383340 New and Original High quality

DSBC-80-200-PPVA-N3 1383340

The DSBC-80-200-PPVA-N3 (1383340) model product is a high-precision double acting standard cylinder designed specifically for industrial automation. Its cylinder diameter is 80mm and stroke is 200mm, complying with ISO 15552 standard. It adopts a profile type cylinder structure and is equipped with adjustable pneumatic buffer system (PPVA) at both ends, effectively reducing impact and noise, and extending service life. This product has the following characteristics:

High strength and corrosion resistance: The piston rod is made of high alloy steel plated with hard chrome, and the cylinder is made of refined aluminum alloy and anodized to ensure wear and corrosion resistance.

Modular design: supports multiple derivative types and accessories (such as square piston rods, anti torsion transformations) to meet different application needs.

Efficient sealing and low friction: The piston seal uses TPE-U material to ensure bidirectional sealing reliability while reducing friction resistance.

Wide working parameters: working pressure range of 0.4 bar to 12 bar, working temperature of -20 ° C to 80 ° C, suitable for dry compressed air or lubricating medium environments.

This model is widely used in industries such as machinery, electronics, packaging, printing, plastics, and robots, and is an ideal execution component for efficiently completing linear reciprocating motion tasks in automated production lines.

Technical specifcations for DSBC-80-200-PPVA-N3 1383340

Specification

Piston diameter: 80 mm

Travel distance: 200 mm

Piston rod thread: M20 × 1.5

Installation method: optional, compliant with ISO 15552 standard

operation parameters

Working pressure range: 0.4 bar to 12 bar

Working mode: Dual action

Working medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4] standard

Corrosion resistance level: Medium (CRC 2)

Environmental temperature range:- 20 ° C to 80 ° C

performance parameter

Theoretical force value at 6 bar:

Forward journey: 3016 N

Return journey: 2721 N

End impact energy: 1.8 J

Buffer length: 31 mm

Buffer type: Pneumatic buffer, adjustable at both ends

Physical parameters

Mobile quality:

Moving mass of 0 mm stroke: 1590 g

Extra moving mass per 10 mm stroke: 39 g

Product weight:

Basic weight for 0 mm stroke: 4500 g

Additional weight per 10 meters of travel: 92 grams

Materials and Sealing

Cylinder material: Smooth anodized refined aluminum alloy

Piston rod material: high alloy steel

Sealing material: TPE-U (polyurethane)

Installation and Connection

Pneumatic interface: G3/8 internal thread

Attachment support: Can be equipped with proximity switches, installation brackets, and other accessories

Application and advantages

Application areas: machinery, electronics, packaging, printing, plastic processing, and robot automation.

Advantages: High precision, low friction, corrosion resistance, modular design, suitable for various industrial environments.

This model of cylinder meets the stringent requirements for linear motion actuators in industrial automation with its efficient, reliable, and flexible configuration.
