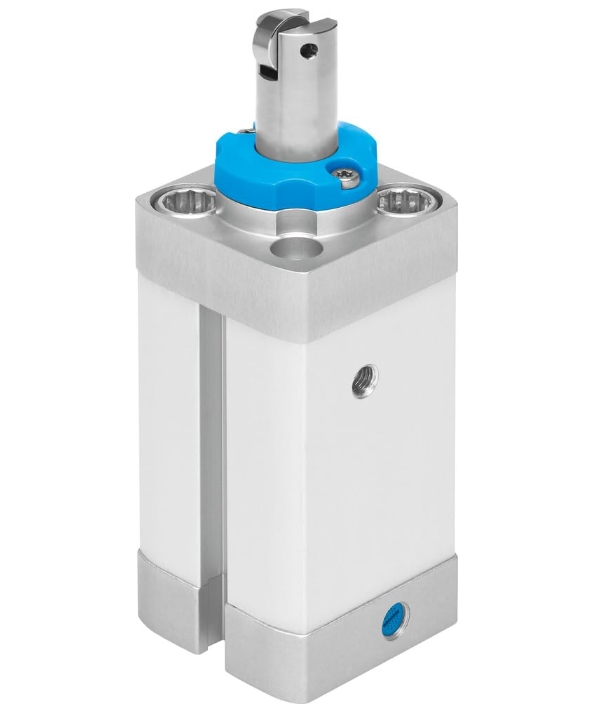

Festo DFSP-Q-32-25-S-PA 575168 Stopper cylinder Brand new

Festo DFSP-Q-32-25-S-PA 575168 Stopper cylinder

Technical Data

Stroke：25 mm

Piston diameter：32 mm

Piston rod thread：M6

Cushioning：Elastic cushioning rings/plates at both ends

Mounting position：optional

Mode of operation：Double-acting

Design：Piston  Piston rod  Profile barrel  Non-rotating

Position detection：Via proximity switch

Piston-rod end：Female thread

Symbol：00991217

Variants：Piston rod with female thread  Non-rotating piston rod

Protection against torque/guide：Flattened piston rod

Operating pressure：0.1 MPa ... 1 MPa

Operating pressure：1 bar ... 10 bar

Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC：2 - Moderate corrosion stress

LABS (PWIS) conformity：VDMA24364-B1/B2-L

Cleanroom class：Class 6 according to ISO 14644-1

Ambient temperature：-10 °C ... 80 °C

Impact force：3270 N

Permissible lateral force during switching operation：595 N

Max. cycle frequency：5 Hz

Type of mounting：Either:With through-hole  Via female thread   With accessories

Pneumatic connection：G1/8

Note on materials：RoHS-compliant

Material collar screws：Galvanised steel

Material cover：Wrought aluminium alloy  Anodised

Material seals：TPE-U(PU)

Material piston rod：High-alloy stainless steel

Material roll：Galvanised steel

Material cylinder barrel：Wrought aluminium alloy  Smooth anodised
