Festo CPV14-M1H-5LS-1/8 Solenoid valve
Description

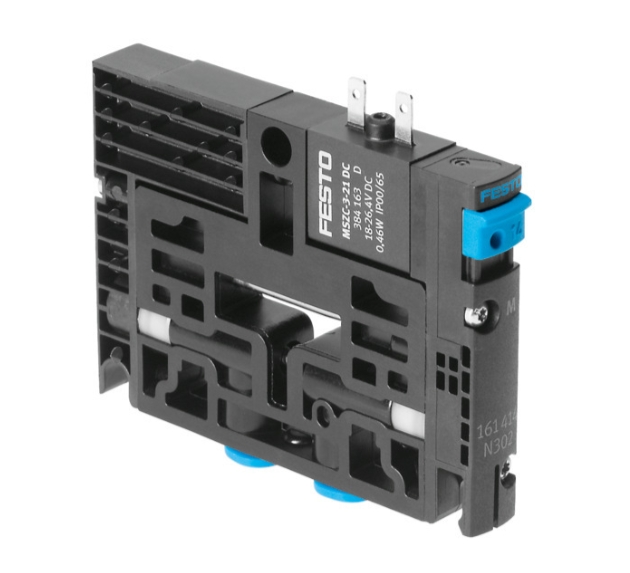

solenoid valve CPV14-M1H-5LS-1/8 For valve terminal CPV. Valve function=5/2 monostable, Type of actuation=electrical, Valve size=14 mm, Standard nominal flow rate=800 l/min, Operating pressure=-0,9 – 10 bar
Information
Valve function：5/2-way, monostable
Standard nominal flow rate (standardised to DIN 1343)：800 l/min
Pneumatic connection, port 1：Common line
Type of actuation：Electric
Technical Data
Valve function：5/2-way, monostable
Type of actuation：Electric
Valve size：14 mm
Standard nominal flow rate (standardised to DIN 1343)：800 l/min
pneumatic working port：G1/8
Operating voltage：24V DC
Operating pressure：-0.09 MPa ... 1 MPa
Operating pressure：-0.9 bar ... 10 bar
Design：Piston gate valve
Type of reset：Pneumatic spring
Degree of protection：IP65
Nominal size：6 mm
Exhaust-air function：Without flow control option
Sealing principle：Soft
Mounting position：optional
Manual override：Detenting Non-detenting
Type of piloting：Pilot actuated
Pilot air supply：External Internal
Flow direction；Non-reversible
Symbol：00991027
lap：Overlap
Pilot pressure：0.3 MPa ... 0.8 MPa
Pilot pressure：3 bar ... 8 bar
b value：0.42
C value：3.2 l/sbar
Switching time off：35 ms
Switching time on：25 ms
Duty cycle：100% in conjunction with holding current reduction
Electrical power consumption：0.65 W
Max. positive test pulse with 0 signal：1400 µs
Max. negative test pulse with 1 signal：400 µs
Operating medium：Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium：Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance：Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance：Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC：2 - Moderate corrosion stress
LABS (PWIS) conformity：VDMA24364-B1/B2-L
Storage temperature：-20 °C ... 40 °C
Media temperature：-5 °C ... 50 °C
Ambient temperature：-5 °C ... 50 °C
Product weight：120 g
Type of mounting：With through-hole
Pilot air port 12/14：Common line
Pilot exhaust port 82/84：Common line
Pneumatic connection, port 1：Common line
Pneumatic connection, port 2：G1/8
Pneumatic connection 3/5 combined：Common line
Pneumatic connection, port 4：G1/8
Note on materials：RoHS-compliant
Material seals：HNBR NBR
Material housing：Die-cast aluminium
Material housing：Brass
Material housing：POM
Material housing：PPS
Material housing：Steel
