PUN-H-6X1-BL 197384

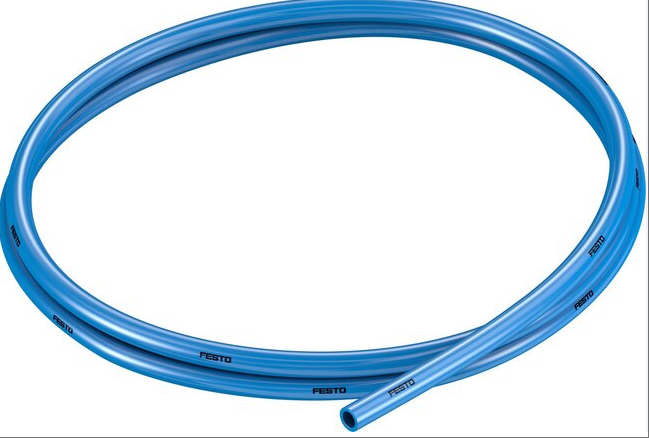

Festo brand PUN-H-6X1-BL (order number 197384) is a blue polyurethane (PU) plastic trachea designed specifically for pneumatic systems, with high flexibility and wear resistance. This model of trachea has an outer diameter of 6mm and an inner diameter of 4mm, suitable for dynamic applications such as drag chains. The minimum bending radius is 10mm, ensuring stable performance even under complex working conditions. Its working pressure range is -0.95 bar to 10 bar, and the applicable ambient temperature range is -35 ° C to 60 ° C, which can meet various industrial environmental requirements. The product has passed the UL94 HB fire test and meets the VDMA 24364-B2-L cleanroom standard, making it suitable for industries with high cleanliness requirements such as food processing and lithium battery production. The trachea adopts a standard interface design for quick installation and maintenance, making it a reliable choice for connecting pneumatic components in automated production lines.
Technical specifcations for PUN-H-6X1-BL 197384
model: PUN-H-6X1-BL
Order number: 197384
Type: Plastic trachea
size parameter
Outer diameter: 6mm
Inner diameter: 4 mm
Wall thickness: 2mm
performance parameter
Work pressure range:- 0.95 bar to 10 bar (depending on temperature)
Environmental temperature range:- 35 ° C to 60 ° C
Bending radius:
Minimum bending radius: 10 mm
Flow related bending radius: 26 mm
Materials and Characteristics
Material: Polyurethane (PU)
Fire test: UL94 HB
Material compliance: free of copper and polytetrafluoroethylene, compliant with RoHS standards
Application and Installation
Applicable scenarios: Suitable for dynamic applications such as drag chains
Working medium: Compressed air (compliant with ISO 8573-1:2010 standard)
Installation method: Supports quick plug connectors (outer diameter 6mm)
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
