CDQ2B 25-15 DZ

SMC CDQ2B 25-15 DZ New and Original High quality

SMC CDQ2B 25-15 DZ module

  • Item no.:

    CDQ2B 25-15 DZ
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    US
  • Color:

    New sealed
  • Lead Time:

    In stock/1-3days

CDQ2B 25-15 DZ

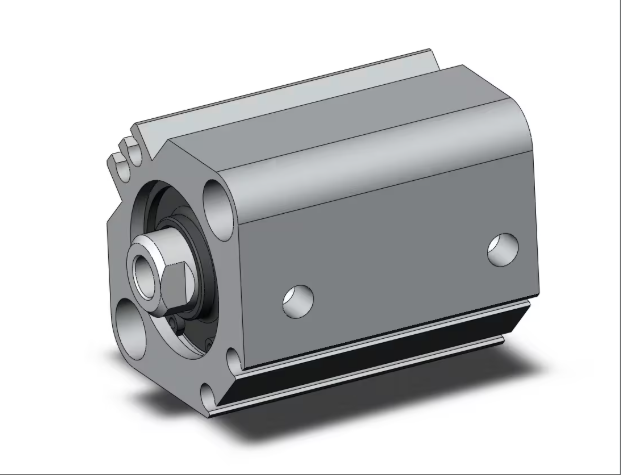

The CDQ2B25-15DZ model product is a thin cylinder belonging to the CQ2 series. It adopts a single rod double acting design and achieves bidirectional linear motion of the piston through compressed air drive. Its cylinder diameter is 25mm, stroke is 15mm, and the main material is aluminum alloy, which combines lightweight and high-strength characteristics to meet the requirements of compact space layout. The cylinder is equipped with a magnetic ring and supports the installation of magnetic switches (which need to be separately equipped), making it easy to achieve position detection function; Adopting a through-hole standard installation method, it is easy to fix on the surface of the equipment. This product is equipped with a cushion design to reduce piston rod impact noise and extend service life. The working temperature range is -10 ℃ to 60 ℃, with a maximum pressure resistance of 1.0MPa. It is compatible with air as the driving medium and does not require additional lubrication, making maintenance convenient. In addition, its magnetic switch installation slot design supports the installation of small magnetic switches on both sides of the Φ 12- Φ 25 cylinder diameter section or on all four sides of the Φ 32- Φ 100 cylinder diameter section, and the magnetic switches do not protrude from the surface, further improving space utilization and system integration. It is widely used in industrial scenarios such as electronic manufacturing and packaging machinery that require strict equipment miniaturization and smooth operation.





Technical specifcations for CDQ2B 25-15 DZ

Infrastructure parameters

model: CDQ2B25-15DZ

Series: CQ2 Series

Action mode: double action, single rod

Cylinder diameter: 25mm

Journey: 15mm

Installation method: through-hole (standard) installation, the "B" in the model identification represents this installation form, which is easy to integrate and install.

Built in magnetic ring: The "D" in the model indicates that the cylinder has a built-in magnetic ring, which can support the installation of magnetic switches and facilitate position detection function.

Magnetic switch installation slot: Z represents the form of magnetic switch installation slot, which supports 2-sided installation in the Φ 12- Φ 25 cylinder diameter section and 4-sided installation in the Φ 32- Φ 100 cylinder diameter section, and the magnetic switch does not protrude from the surface, improving space utilization.

2、 Performance parameters

Fluid used: Air

Pressure resistance test pressure: 1.5MPa

Maximum operating pressure: 1.0MPa

Minimum operating pressure: 0.05MPa

Environment and fluid temperature:

When there is no magnetic switch: -10 ℃ to 70 ℃ (unfrozen)

When equipped with a magnetic switch: -10 ℃ to 60 ℃ (unfrozen)

Lubrication: No need

Piston speed: 50-500mm/s

Travel tolerance: 0 to 1mm

Interface caliber: Provides various specifications such as M5 × 0.8, 1/8, 1/4, 3/8, etc. to meet different piping needs.

Rod end thread:

Type: M (external thread)

Size: M6 × 1.0

3、 Material and Structure

Rod side cylinder head material: aluminum alloy

Cylinder material: Aluminum alloy

Piston rod material: stainless steel

Piston material: Aluminum alloy

Rod end nut material: carbon steel









Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.



Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
