SMC CD85N16-40-B New and Original High quality

CD85N16-40-B

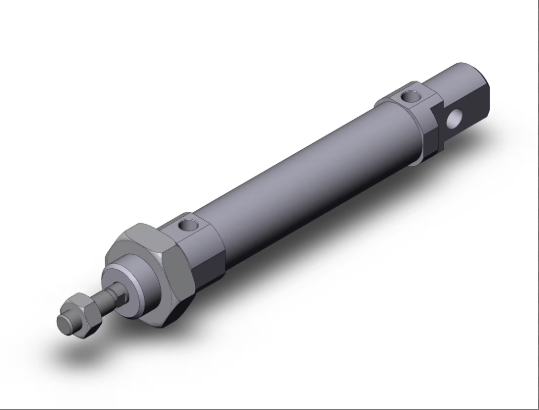

The CD85N16-40-B model is a single rod double acting cylinder that complies with ISO standards. It adopts a compact design with a thin cylindrical shape, a cylinder diameter of 16mm and a stroke of 40mm. The main material is aluminum alloy, which combines lightweight and high-strength characteristics, and is suitable for automation equipment with limited space. Its built-in magnetic ring supports magnetic switch installation, making it easy to achieve position detection function; Adopting a double bent anodized aluminum end cap, stainless steel sleeve, and piston rod structure, it enhances corrosion resistance and dust resistance, especially suitable for dusty or humid environments. The cylinder is equipped with a piston rod locking nut and an end mounting nut, simplifying the installation process; Built in low friction synthetic rubber gasket seal, allowing for a running speed of up to 1500mm/s, meeting the requirements of high-speed reciprocating motion. This product is compatible with M5 × 0.8 threaded interfaces, with a working temperature range of -20 ℃ to 80 ℃ and a maximum pressure resistance of 1.0MPa. It reduces impact noise through the use of crash pads and cushioning design, and is widely used in industrial scenarios such as electronic manufacturing and packaging machinery that require strict requirements for equipment miniaturization and smooth operation.

Technical specifcations for CD85N16-40-B

Infrastructure parameters

Model: CD85N16-40-B

Series: C85 series, compliant with ISO 6432 standard

Cylinder diameter: 16mm

Journey: 40mm

Main material: Made of stainless steel piston rod and double bent anodized aluminum end cap, it has good corrosion resistance and dust resistance, suitable for use in dusty environments.

Installation method: Basic type (also a single earring integrated type), easy to fix and save space.

Sealing form: Built in synthetic rubber gasket sealing, low friction design, smooth operation.

2、 Performance parameters

Action mode: Double acting, achieving bidirectional linear motion of the piston through compressed air.

Work pressure range:

Minimum operating pressure: 0.05MPa

Maximum operating pressure: 1.0MPa

Guaranteed pressure resistance: 1.5MPa

Working temperature range: -10 ℃ to 60 ℃, can adapt to temperature changes in conventional industrial environments.

Using fluid: air, no additional lubrication required, simplifying maintenance process.

Buffer form: Cushion buffer (standard), reducing piston rod impact noise and extending cylinder service life.

Piston speed range: 50mm/s to 1500mm/s, supports high-speed or low-speed working conditions, and adapts to different motion rhythm requirements.

Allowable deviation of travel length: 0mm, ensuring repeated positioning accuracy.

3、 Interface and installation parameters

Pipe diameter (air pressure port): M5 × 0.8, compatible with standard pneumatic pipeline interfaces.

Type of through-hole thread: M-type thread, easy to connect with joints or valve groups.

Rod end shape: External thread, with a size of M6 × 1 for easy connection with loads.

Magnetic switch compatibility: Non magnetic switch (with built-in magnetic ring model D), requires additional magnetic sensors to achieve position detection function.

Magnetic switch installation method: Steel strip installation type (Type B), easy to adjust the position of the magnetic switch.

4、 Accessories and Accessories

Piston rod locking nut: included for easy fixation of the piston rod position.

End installation nut: included to simplify the installation process.
