SMC AS2000-F02 New and Original High quality

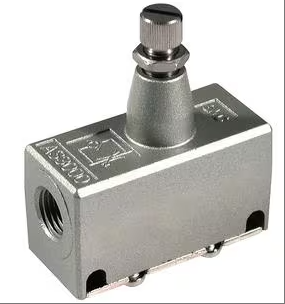

AS2000-F02

The AS2000-F02 model product is a speed control valve belonging to the AS series. It adopts exhaust throttling control method and achieves precise control of cylinder movement speed by adjusting the exhaust flow rate. Its main structure is designed with a metal valve body elbow, with a built-in quick change joint structure, supporting flexible piping requirements for R1/4 external thread interfaces and a diameter of Φ 8mm, and equipped with a hexagonal locking nut to ensure connection reliability. This product is suitable for a pressure range of 0.05-1.0MPa, with a pressure resistance performance of up to 1.5MPa. It can operate stably in environments ranging from -5 ℃ to 60 ℃, and is optimized specifically for the speed control requirements of pneumatic systems in industrial automation scenarios. Its compact design effectively saves installation space, while improving corrosion resistance through standardized sealing specifications and electroless nickel plating surface treatment. It can be adapted to components such as cylinders and solenoid valves to form a complete pneumatic control circuit.

Technical specifcations for AS2000-F02

Infrastructure parameters

model: AS2000-F02

Series: AS series speed control valve

Valve body structure: Straight through type, using metal valve body design, compact structure, easy to install and maintain.

Interface form:

Thread type: Rc (British pipe thread)

Connection diameter: 1/4 inch, compatible with conventional pneumatic piping systems.

Lock nut type: Hexagonal lock nut, ensuring a secure and reliable connection.

2、 Performance parameters

Control method: Exhaust throttling type, which controls the movement speed of the cylinder by adjusting the exhaust flow rate.

Fluid used: air, suitable for conventional compressed air systems.

Pressure range:

Maximum operating pressure: 1.0 MPa

Minimum operating pressure: 0.05 MPa

Pressure resistance: 1.5 MPa

Temperature range: The fluid temperature used is -5 ℃ to 60 ℃, which can adapt to most industrial environments.

Weight: Approximately 0.2kg, lightweight design for easy installation and integration.

3、 Functional characteristics

Flow regulation: By rotating the handwheel, precise adjustment of exhaust flow can be achieved, thereby controlling the movement speed of the cylinder.

Sealing performance: Built in sealant coating enhances interface sealing and reduces leakage risk.

Installation convenience: Supports various forms such as direct installation, L-shaped bracket installation, DIN rail installation, and holder installation, adapting to different equipment layout requirements.

Corrosion resistance: Non electrolytic nickel plating surface treatment improves the corrosion resistance of the valve body and extends its service life.

4、 Application scenarios

The AS2000-F02 model product is suitable for industrial automation scenarios that require precise control of cylinder movement speed, such as pneumatic manipulators, automated assembly lines, material handling equipment, etc. Its compact structural design and reliable flow control performance make it a key component in pneumatic systems.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
