AS1201F-M5-06

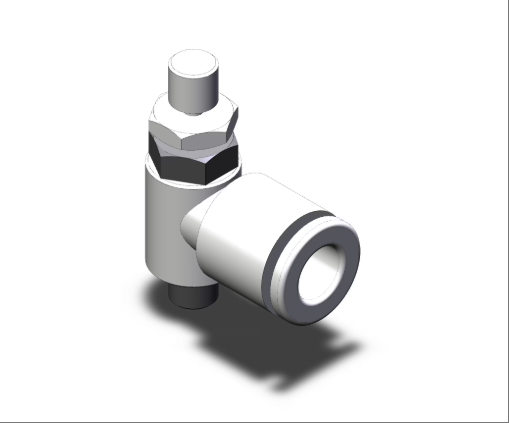

The AS1201F-M5-06 model product is an AS series speed control valve, designed with an elbow shape and a built-in quick change joint structure. It is compatible with M5 × 0.8 external thread inlet and Φ 6mm pipe diameter outlet, and achieves precise adjustment of cylinder movement speed through exhaust throttling. This product has a push lock structure that can be used to lock pipelines with one hand, and is equipped with a large handwheel for convenient operation. Its pipe loading and unloading force is reduced by 30% insertion force and 20% detachment force compared to traditional models, while maintaining the same pulling strength. The 360 ° free piping feature supports multiple connection forms and is suitable for hoses made of nylon, polyurethane, and other materials. The surface treatment of electroless nickel plating enhances corrosion resistance, and the working temperature range covers -5 ℃ to 60 ℃, with a maximum pressure resistance of 1.5MPa. It is suitable for flow control scenarios in pneumatic systems in compact spaces.
Technical specifcations for AS1201F-M5-06
Basic specifications
Interface and pipe diameter
Inlet: M5 × 0.8 external thread, compatible with 6mm diameter outlet, supports quick change joint structure, compatible with nylon, polyurethane and other materials hoses.
Air outlet: with a diameter of 6mm, it forms a standardized interface combination with the air inlet to ensure compatibility and sealing of the air path connection.
Valve body structure
Bend type design, built-in quick change connector, supports 360 ° free piping, meets different installation angle requirements.
The main material adopts a metal valve body, which is treated with electroless nickel plating on the surface to enhance corrosion resistance and impact resistance.
2、 Performance parameters
control mode
Exhaust throttling type flow control achieves precise control of cylinder movement speed by adjusting exhaust flow rate, suitable for one-way throttling scenarios.
Pressure Range
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.1 MPa
Pressure resistance: 1.5 MPa, ensuring structural stability under high pressure conditions.
temperature range
Environment and fluid temperature: -5 ℃ to 60 ℃, suitable for temperature fluctuations in conventional industrial environments.
3、 Operational characteristics
Adjust Efficiency
The adjustment time has been shortened to 8 seconds (compared to the traditional model's 17 seconds), and quick settings are achieved through a push-pull locking dial.
Color coded dial design, supporting remote recognition and instrument reading.
Operational convenience
The large-scale design of the handwheel enhances the precision and comfort of manual adjustment.
Push locking structure, which can lock the pipeline with one hand and reduce the complexity of operation.
Pipe handling capability
The insertion force is reduced by 30% (to 8N), and the detachment force is reduced by 20% (to 5N), while maintaining the same tensile strength as the current product.
4、 Installation and compatibility
Installation method
Supports direct installation, L-track installation, DIN rail installation, and holder installation, adapting to various device layout requirements.
The elbow shaped structure can be embedded into the cylinder port, saving installation space.
compatibility
The main body can rotate 360 ° and is compatible with multi-directional pipeline connections.
Adapt to SMC universal speed controller interface standard and support modular system integration.
5、 Environment and Certification
Environmental adaptability
The dustproof and waterproof performance meets the requirements of industrial scenarios, and the electroless nickel plating surface treatment extends the outdoor service life.
Compliance certification
Compliant with RoHS standards, with lead content in compliance with environmental regulations, suitable for green manufacturing systems.
