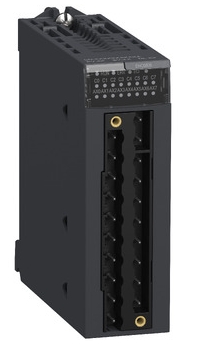

Schneider BMXEHC0800 variable speed drive ATV320
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 8 channels, 2 single mode inputs and 3 special dual phase mode inputs. It is a counter module with an input voltage of 24V DC and a current consumption of 200mA at 3.3V DC bus, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, down counting, count events, 32bit counter counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.113kg. It is suitable for medium to large process applications.It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Technical specifcations for BMXEHC0800
Product or Component Type : Counter module
Number of channels : 8
Maximum counting frequency : 10000 Hz
Number of inputs : 2 single mode)
3 special dual phase mode)
Input compatibility : 19.2…30 V 2-wire/3-wire proximity sensor
incremental encoder with push-pull outputs, 10...30 V totem pole
Input voltage : 24 V DC type 3
Counter functions : Up/down counter
32-bit counter counting
Frequency meter
Loop (modulo) counting
Count events
Down counting
Cycle time ： 5 ms
Isolation voltage ： 1500 V 60 s
Input type ： High speed
Input voltage limits ： 30 V
Input current ： 2 mA at 11 V
Voltage state 1 guaranteed ： 11...30 V
Current state 1 guaranteed >= 6 mA
Voltage state 0 guaranteed < 5 V
Current state 0 guaranteed <= 1.5 mA
Electrical connection ： 1 connector 20 pins
Current consumption ： 200 mA 3.3 V DC bus
80 mA 24 V DC sensor
Module format ： Standard
Net Weight ： 0.249 lb(US) (0.113 kg)
Ambient air temperature for operation ： 32…140 °F (0…60 °C)
Relative Humidity ： 10…95 % without condensation
IP Degree of Protection ： IP20
Directives ： 2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
Protective treatment ： TC
Unit Type of Package 1 ： PCE
Number of Units in Package 1 ： 1
Package 1 Height ： 2.05 in (5.2 cm)
Package 1 Width ： 4.33 in (11.0 cm)
Package 1 Length ： 4.65 in (11.8 cm)
Package 1 Weight ： 5.04 oz (143.0 g)
Unit Type of Package 2 ： S02
Number of Units in Package 2 ： 15
Package 2 Height ： 5.91 in (15.0 cm)
Package 2 Width ： 11.81 in (30.0 cm)
Package 2 Length ： 15.75 in (40.0 cm)
Package 2 Weight ： 5.27 lb(US) (2.39 kg)
