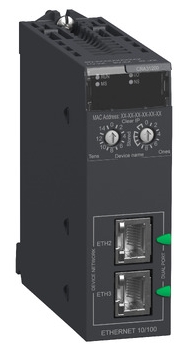

Schneider BMXCRA31200 variable speed drive ATV320
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 2 ports. Integrated connection is EtherNet/IP for device network. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with 0 to 128 discrete channels and 0 to 16 analogue channels. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Technical specifcations for BMXCRA31200
Range of Product : Modicon X80
Range Compatibility : Modicon M580
Modicon Quantum
Product or Component Type : I/O expansion module
Device Application : X80 Ethernet RIO drop adaptor
Product Specific Application : For remote I/O modules
Bus type : Bus X across the remote backplane
Number of port : 2
Integrated connection type : 2 port Ethernet RIO Network (RSTP)
Communication Network Type : IPv4 (internet protocol)
Communication Port Protocol : EtherNet/IP
Communication Service : Ethernet/IP adapter
RSTP (Ring topology support)
Ethernet RIO network
Quality of Service (QoS)
CIP Explicit messaging (server)
Modbus TCP server for module diagnostics
DHCP client
TFTP client
FTP client
FDR client
SNTP client
SNMP agent
Cybersecurity : Syslog protocol support
Connector Type : 2 RJ45
Exchange mode : Half duplex, full duplex, autonegotiation, auto MDIX
Transmission Rate : 10/100 Mbit/s
Port Ethernet : 10/100BASE-TX
Function Available : CCOTF (configuration change on the fly)
Input data is collected and published to the remote I/O head adaptor
Output modules are updated with the data received from remote I/O
head adaptor
Diagnostics for remote I/O devices (Device DDT)
I/O extension rack
Data recording : 10 ms time stamps
Topology : Ring
Local signalling : For module active (RUN) 1 LED (green)
for module error (ERR) 1 LED (red)
for module status (Mod Status) 1 LED (green/red)
for network communication status (Net Status) 1 LED (green/red)
for Ethernet link diagnostics (STS) 1 LED (green)
Current Consumption : 1200 mA
Input voltage : 3.3 V DC
Product compatibility : 0…128 discrete channel
0…16 analog channel
Module format : Standard
Net Weight : 0.496 lb(US) (0.225 kg)
Maximum altitude transport : 9842.5 ft (3000 m)
Relative Humidity : 95 % without condensation
Fixing Mode : By screws
Mounting Mode : Rack-mounted
Width : 1.3 in (32 mm)
Height : 3.9 in (100 mm)
Depth : 3.4 in (87.5 mm)
