Schneider BMXAMI0410 variable speed drive ATV320

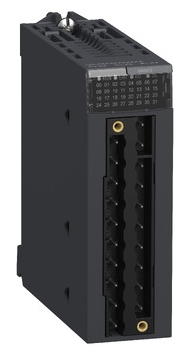

This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Technical specifcations for BMXAMI0410
Range of Product ： Modicon X80
Product or Component Type ： Analog input module
Electrical connection ： 20 ways 1 connector
Isolation between channels ： Isolated
Input level ： High level
Analogue input number ： 4
Analogue input type ： Current +/- 20 mA
Current 0...20 mA
Current 4...20 mA
Voltage +/- 10 V
Voltage +/- 5 V
Voltage 0...10 V
Voltage 0...5 V
Voltage 1...5 V
Analog/digital conversion ： 24 bits
Analogue input resolution ： 16 bits
Permitted overload on inputs : +/- 30 V +/- 10 V
+/- 30 V +/- 5 V
+/- 30 V 0...10 V
+/- 30 V 0...5 V
+/- 30 V 1...5 V
+/- 90 mA +/- 20 mA
+/- 90 mA 0...20 mA
+/- 90 mA 4...20 mA
Input impedance ： 10 MOhm in voltage mode
250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
Precision of internal conversion resistor ： 0.1 % - 15 ppm/°C
Type of filter ： First order digital filtering
Unit Type of Package 1 ： PCE
Number of Units in Package 1 ： 1
Package 1 Height ： 2.20 in (5.600 cm)
Package 1 Width ： 4.37 in (11.100 cm)
Package 1 Length ： 4.61 in (11.700 cm)
Package 1 Weight ： 6.067 oz (172.000 g)
Unit Type of Package 2 ： S02
Number of Units in Package 2 ： 15
Package 2 Height ： 5.91 in (15.000 cm)
Package 2 Width ： 11.81 in (30.000 cm)
Package 2 Length ： 15.75 in (40.000 cm)
Package 2 Weight ： 6.444 lb(US) (2.923 kg)
