Schneider BMXNRP0200 variable speed drive ATV320

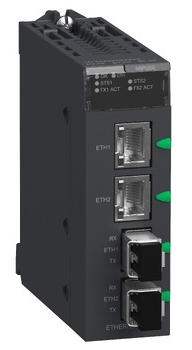

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
Technical specifcations for BMXNRP0200
Rated voltage : 24 V
Current consumption : 140 mA typical
200 mA maximum
Function Available : Hot swap
Number of port : 2 RJ45 100BASE-TX IEEE 802.3u
2 fiber optic 100BASE-FX IEEE 802.3u
Local signalling : For power supply status 1 LED (green)
for error condition (ERR) 1 LED (red)
for link status 2 LEDs (green)
for fiber port state and activity 2 LEDs (green)
Wavelength : 0.000051575 in (1310 nm)
Operating Distance : 0...2000 m
Attenuation : -23.5…-14 dB 50/125 µm)
-20…-14 dB 62.5/125 µm)
Rise/fall time : 3 ns
Receiver Sensitivity : - 31...- 14 dBm
Marking : CE
Width : 1.3 in (32 mm)
Height : 3.9 in (100 mm)
Depth : 3.4 in (86 mm)
Net Weight : 7.2 oz (203 g)
ambient air temperature for operation : 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
Relative humidity : 0…95 %
Directives : 2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
Product certifications : CE
RCM
CSA
EAC
Merchant Navy
UL
Standards : EN/IEC 61010-2-201
EN/IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201
Dielectric strength : 1400 V DC between field and bus
500 V DC between channels
IP Degree of Protection : IP20
Operating altitude : 0...13123.36 ft (0...4000 m)
Packing Units
Unit Type of Package 1 : PCE
Number of Units in Package 1 : 1
Package 1 Height : 2.28 in (5.800 cm)
Package 1 Width : 4.41 in (11.200 cm)
Package 1 Length : 5.12 in (13.000 cm)
Package 1 Weight : 8.783 oz (249.000 g)
Unit Type of Package 2 : S02
Number of Units in Package 2 : 14
Package 2 Height : 5.91 in (15.000 cm)
Package 2 Width : 11.81 in (30.000 cm)
Package 2 Length : 15.75 in (40.000 cm)
Package 2 Weight : 8.353 lb(US) (3.789 kg)
