MITSUBISHI GT1675M-VTBA New and Original High quality

GT1675M-VTBA

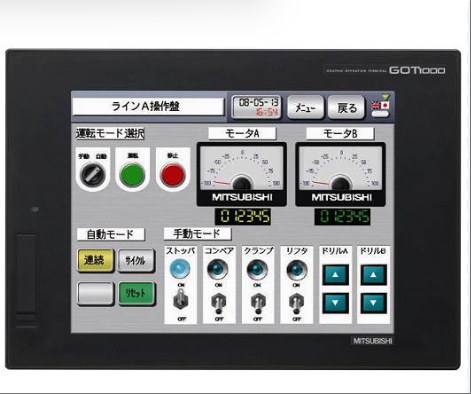

The GT1675M-VTBA model product is a high-performance human-machine interface device designed specifically for industrial automation scenarios. It features a 10.4-inch TFT color LCD display with a resolution of SVGA (800 × 600 dots) and can display 65536 colors, meeting complex monitoring needs. It is equipped with a 4-wire resistive touch screen, supporting multi touch operation, with sensitive response and a lifespan of over 1 million times, ensuring operational stability and durability. The device has a built-in 15MB user storage space, supports SD memory card expansion, can efficiently store alarm logs and other data, and is compatible with GT Works3 development software, achieving seamless connection with PLC, frequency converter and other devices. In terms of interfaces, this model integrates RS-232, RS-422, USB, and Ethernet interfaces, supports multi protocol communication, and meets the requirements of industrial equipment collaborative control. The protection level reaches IP65F, with dustproof and waterproof capabilities, and can adapt to harsh environments such as dust and humidity. The working temperature range covers -10 ℃ to 55 ℃, suitable for industrial scenarios with high reliability requirements such as automobile manufacturing and food processing.

Technical specifcations for GT1675M-VTBA

Display parameters

Screen size: 10.4-inch TFT color LCD screen, with high brightness and wide viewing angle characteristics, suitable for complex lighting environments in industrial sites.

Resolution: 640 × 480 dots (VGA), ensuring clear and delicate display content.

Display color: 65536 colors, meeting the basic color requirements of industrial monitoring.

LCD brightness: 450 cd/m ², with high brightness, making it easy to view in strong light environments.

Display size: 211 × 158mm, providing sufficient display area.

Touch parameters

Touch mode: Analog resistive touch screen, supports multi touch operation (some functions may be limited by specific applications), with sensitive and stable response.

Touch life: Under the condition of operating force less than 0.98N, the touch life can reach more than 1 million times, with strong durability.

Touch function: Adopting an analog touch panel to ensure the accuracy and reliability of touch operations.

Storage parameters

User storage capacity: 15MB built-in flash memory, used to store project data and operating system.

Extended storage: Supports expanding storage capacity through SD memory cards to meet large-scale data storage needs.

Interface parameters

Communication interface:

RS-232： 1 channel, supporting multiple transmission speeds, used for communication with connected devices or connection to personal computers.

RS-422/485： Built in interface, supports multi protocol communication, can connect various FA machines, barcode readers, etc.

Ethernet: Standard interface, supports simultaneous connection of multiple devices, and achieves collaborative control.

USB interface: includes USB HOST and USB device ports, supports transferring engineering data or reading log data through USB storage, and can also be connected to a USB mouse or keyboard for use.

Power supply parameters

Input power supply voltage: AC100~240V, suitable for a wide range of voltage fluctuations.

Input frequency: 50-60Hz, meeting power standards in different regions.

Power consumption: The specific power consumption value is not explicitly mentioned, but the power consumption is usually low during operation, meeting the energy-saving needs of industrial equipment.

Structure and protection parameters

Protection level: IP67, with dustproof and waterproof capabilities, can adapt to harsh industrial environments such as dust and humidity.

Dimensions: 303 × 214 × 49mm, compact structure, easy to install and integrate.

Panel opening size: matches the external dimensions, making it convenient for equipment installation on control cabinets and other devices.

Weight: Approximately 2.1kg, convenient for handling and deployment.

Working temperature range: 0 ℃ to 50 ℃ (display screen), 0 ℃ to 55 ℃ (outside the display screen), meeting the temperature requirements of different industrial scenarios.

Storage environment temperature: -20 ℃ to 60 ℃, can store equipment within a wide temperature range.

Working/storage environment humidity: 10-90% RH, no frost, suitable for different humidity environments.
