MITSUBISHI GT1585-STBA New and Original High quality

GT1585-STBA

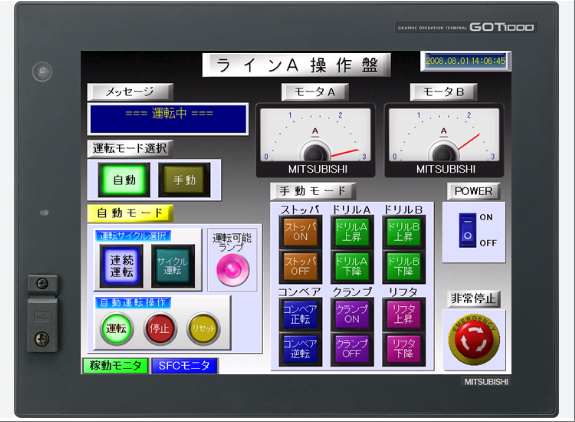

The GT1585-STBA model is a 12.1-inch TFT color LCD screen human-machine interface device with high brightness and wide viewing angle display characteristics, which can adapt to complex lighting environments in industrial sites. Its core configuration supports SVGA (800 × 600) resolution and 65536 color display, balancing image clarity and color reproduction ability, meeting the strict requirements of industrial monitoring for visual presentation. The device adopts a 4-wire resistive touch screen, supporting multi touch operations, with sensitive response and a lifespan of over 1 million times. With 1200 touch keys per screen, it can efficiently handle multitasking interaction needs. This model has a built-in 9MB storage space, supports expanding storage capacity through CF card, and is equipped with multiple communication interfaces such as Ethernet, RS232, USB, etc. It is compatible with GT Works3 development software and can seamlessly connect with industrial equipment such as PLC and frequency converter. In terms of protection, the front of the equipment meets the IP67F standard, and the interior of the panel meets the IP2X standard, with dustproof and waterproof capabilities. The working temperature range covers -10 ℃ to 55 ℃, and supports AC100~240V wide voltage input, which can adapt to harsh industrial environments such as dust, humidity, and voltage fluctuations. It is widely used in packaging machinery, automotive manufacturing, energy management, and other fields that require strict equipment stability.

Technical specifcations for GT1585-STBA

Display parameters

Screen size: 12.1-inch TFT color LCD screen with high brightness and wide viewing angle characteristics, capable of displaying images clearly in complex lighting environments.

Resolution: SVGA (800 × 600), providing clear and delicate images to meet industrial monitoring needs.

Display color: 65536 colors, which can meet the basic color requirements in industrial scenes and ensure visual presentation effect.

Viewing angles: 60 degrees left and right, 40 degrees up, and 50 degrees down, making it convenient for operators to view screen content from different angles.

Display size: 246 (W) × 184.5 (H) mm.

Display character count: 50 characters x 37 lines (full width) for 16 dot matrix standard fonts; When using a 12 dot matrix standard font, it is 66 characters x 50 lines (full width).

LCD brightness: 350 cd/m ², and supports 8-level brightness adjustment. Users can flexibly set it according to their actual needs.

Touch parameters

Touch mode: Adopting a matrix resistive touch screen, supporting multi touch (up to 2 points simultaneously pressed), the operation is sensitive and stable.

Touch key count: 1900/1 screen (38 rows x 50 columns), which can meet the multi task interaction needs in complex industrial scenes.

Button size: minimum 16 x 16 dots per button to ensure precise operation.

Lifespan: Under the condition of operating force below 0.98N, the touch life can reach more than 1 million times, with strong durability.

Human body sensing: The detection distance is 1m, the detection range is 70 degrees up, down, left, and right, and the detection delay time can be set within 0-4 seconds.

Storage parameters

User memory capacity: Built in flash memory 9MB, used for storing engineering data and operating systems. In addition, the storage capacity can be expanded through CF cards, up to a maximum of 57MB.

Interface parameters

RS-232: 1 channel, transmission speed includes 115200/57600/38400/19200/9600/4800bps, interface shape is D-sub 9-pin (male head), used for communication with connected devices or connection to personal computers.

USB: 1 channel, maximum transfer speed of 12Mbps at full speed, interface shape of USB Mini-B, used for connecting to personal computers.

CF card interface: The connector shape is TYPEI, which facilitates users to backup data and expand storage capacity.

Other interfaces: It also supports bus connection interface, serial communication interface, MelsecNet/H communication interface, CC Link communication interface, Ethernet interface, etc., which can achieve simultaneous connection of multiple devices.

Power supply parameters

Input power supply voltage: AC100~240V (+10%, -15%), able to adapt to a wide range of voltage fluctuations.

Input frequency: 50/60Hz ± 5%.

Power consumption: Under normal working conditions, it is below 41W, and when the backlight is turned off, it is below 28W.

Impulse current: below 45A (4ms, at maximum load).

Allowable instantaneous stop time: within 20ms, able to maintain stable operation in the event of a brief power interruption.

Voltage endurance: AC1500V for 1 minute between the power terminal and ground wire.

Insulation resistance: The DC500V between the power terminal and the ground wire should pass through an insulation resistance meter of 10M Ω or above.

Structure and protection parameters

Protection structure: The front part meets the IP67F standard, and the interior of the panel meets the IP2X standard, with dustproof and waterproof capabilities, and can adapt to harsh industrial environments.

Dimensions: 316 (W) × 242 (H) × 52 (D) mm.

Panel opening size: 302 (W) × 228 (H) mm.

Weight: Approximately 2.8KG (excluding installation accessories).

Cooling method: self cooling.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment

More Products In Stock:
