MITSUBISHI GT1455-QTBDE New and Original High quality

GT1455-QTBDE

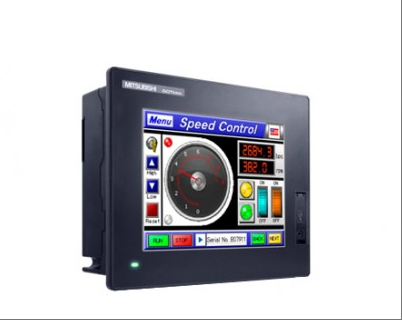

The GT1455-QTBDE model product is a high-performance industrial touch screen human-machine interface (HMI) designed specifically for complex industrial automation scenarios. It adopts a 10.4-inch TFT color LCD display screen with a resolution of 640 × 480 pixels, supports 256 color display, and has clear and delicate images. It also has high brightness and wide viewing angle characteristics, which can provide high-quality visual experience under different lighting and angles. This product is equipped with a high-performance processor and supports multi protocol communication interfaces (such as RS-232, RS-422/485, Ethernet, etc.). It can seamlessly integrate with Mitsubishi PLC and other mainstream brand controllers to achieve high-speed data exchange and device monitoring. Its protection level reaches IP65, with dustproof and waterproof capabilities, and a working temperature range of 0-55 ℃, which can adapt to harsh industrial environments. The product has a built-in large capacity storage space, supports USB interface expansion, and is equipped with GT Modeler 2 Version 2 software, providing rich graphic design tools and function block libraries, making it convenient for users to quickly develop complex applications. In addition, GT1455-QTBDE supports practical functions such as multilingual switching, alarm management, and formula storage, and is widely used in packaging machinery, textile equipment, automated production lines, and other fields. It can significantly improve equipment development efficiency and system integration, and is a reliable human-machine interaction solution in industrial automation systems.

Technical specifcations for GT1455-QTBDE

Display parameters

Display screen type: TFT color LCD screen (high brightness, wide field of view).

Screen size: 5.7 inches.

Resolution: QVGA [320 × 240].

Display size: 115 (W) × 86 (H) mm.

Display character count: 20 characters x 15 lines (full width) when using a 16 dot matrix standard font; When using a 12 dot matrix standard font, 26 characters x 20 lines (full width).

Display color: 65536 colors.

Perspective: 80 degrees left and right, 80 degrees up, and 60 degrees down.

Brightness adjustment: 8 levels.

LCD brightness: 400cd/m ².

Backlight: LED can be set (no need to replace), with a lifespan of about 50000 hours or more and white light.

2、 Touch panel parameters

Touch mode: Analog resistive film mode.

Key size: minimum 2 x 2 dots per key.

Simultaneously press: cannot be pressed simultaneously (only touch 1 point).

Lifespan: Over 1 million cycles (operating force below 0.98N).

3、 Storage parameters

User memory: Built in flash memory 9MB (for storing project data and OS), SRAM 512K bytes (for battery backup).

Battery: GT11-50BAT lithium battery, with a lifespan of approximately 5 years (ambient temperature 25 ℃).

Interface Expansion: Supports SD memory cards for data backup and expanding storage capacity.

4、 Interface parameters

RS-232： 1 channel, transmission speed 115200/57600/38400/19200/9600/4800bps, interface shape D-sub 9-pin (male).

RS-422/485： 1 channel, transmission speed 115200/57600/38400/19200/9600/4800bps, interface shape D-sub 9-pin (female).

Ethernet: 2 channels, data transmission mode 100BASE-TX/10BASE-T, interface shape RJ-45 (module plug).

USB（host）： 1 channel (back), maximum transfer speed High Speed 480Mbps, interface shape USB-A.

USB（device）： 1 channel (front), maximum transfer speed High Speed 480Mbps, interface shape USB Mini-B.

5、 Electrical parameters

Power supply voltage: DC24V（+10%、-15%）。

Power consumption: The GOT unit consumes 8.4W, and the GOT unit consumes 7.44W when the backlight is turned off.

Impulse current: below 30A (DC26.4V) 2ms.

Allowable instantaneous stop time: within 5ms.

Noise tolerance: A noise simulator with a noise voltage of 1000Vp-p and a noise amplitude of 1 μ s, based on a noise frequency range of 30-100Hz.

Voltage endurance: AC350V for 1 minute between the power terminal and ground wire.

Insulation resistance: The power terminal is connected to the ground wire at a voltage of DC500V, and the insulation resistance meter is above 10M Ω.

6、 Structure and protection parameters

Protection structure: IP67F on the front and IP2X inside the cabinet.

Dimensions: 164 (W) × 135 (H) × 55 (D) mm.

Panel opening size: 153 (W) × 121 (H) mm.

Weight: 0.7kg (excluding installation accessories).
