MITSUBISHI GT1265-VNBA New and Original High quality

GT1265-VNBA

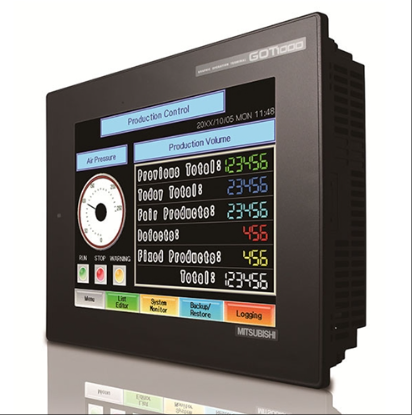

The GT1265-VNBA model is a high-performance industrial touch screen human-machine interface (HMI) product designed specifically for industrial automation scenarios. It adopts an 8.4-inch TFT color LCD display screen with a resolution of 640 × 480 pixels, which can present a brilliant 256 color image, with clear display and rich color hierarchy, and can adapt to the operational needs of different angles and lighting conditions. This product supports AC100~240V wide voltage input, adapts to various power environments, and has a built-in 6MB storage space to meet engineering data storage needs. It is also equipped with USB interface, RS-422/485 interface, and RS-232 interface, which can seamlessly connect with Mitsubishi PLC and other mainstream brand PLCs to achieve high-speed data transmission and equipment monitoring. Its protection level reaches IP67, with dustproof and waterproof capabilities, and a working temperature range of 0-55 ℃, which can adapt to harsh industrial environments. In addition, it supports GT Designer 2 Version 2 software for graphic design, with convenient operation and rich functions. It is widely used in industrial fields such as packaging machinery, textile equipment, and automated production lines, which helps to improve equipment development efficiency and system integration.

Technical specifcations for GT1265-VNBA

Display parameters

Display size: 8.4 inches, equipped with TFT color LCD display screen, capable of presenting clear and delicate images.

Resolution: 640 × 480 pixels, meeting the requirements for image accuracy in the field of industrial automation.

Display color: 256 colors, providing rich color levels and enhancing the visual experience of the user interface.

Perspective: 45 degrees left and right, 30 degrees up, and 20 degrees down, making it convenient to view the displayed content from different angles.

Contrast: It can be adjusted up to 4 levels to meet the needs of different lighting conditions.

Brightness: The brightness of the LCD unit is 150cd/m ² (some information mentions 200cd/m ², which may be due to differences in product batch or configuration), ensuring clear and visible images.

2、 Electrical parameters

Input voltage: Supports AC100~240V wide voltage input, suitable for power standards in different regions.

Power consumption: The working power consumption is relatively low, which meets the energy-saving requirements of industrial equipment (the specific power consumption value may vary depending on product configuration and usage environment).

Processor: Built in 32-bit RISC CPU, with a main frequency of 400MHz, capable of high-speed computing.

Memory: Built in 6MB flash memory for storing engineering data and operating systems.

3、 Interface parameters

RS-422/485 interface: supports high-speed data transmission and can connect various FA devices.

RS-232 interface: used to connect devices such as PLCs and barcode readers to achieve data communication.

USB interface: Supports USB Mini interface, with faster upload and download speeds, making it convenient to connect with personal computers.

Ethernet interface: Some information mentions a built-in Ethernet interface that supports network communication, but the specific configuration may vary depending on the product model or batch.

4、 Protection and structural parameters

Protection level: The panel protection level is IP67, with a certain degree of dust and water resistance, and can adapt to harsh industrial environments to a certain extent.

Dimensions: Approximately 241 (W) × 190 (H) × 58 (D) mm, compact structure, easy to install and integrate into various industrial equipment.

Weight: Approximately 1kg (some information mentions 1.7kg, possibly due to differences in product configuration or shell material), lighter in weight, convenient for handling and installation.

Working temperature: 0~55 ℃ (some information mentions -20~70 ℃, but the working temperature range of industrial touch screens is usually narrow to ensure stability and reliability), suitable for temperature changes in different industrial environments.

5、 Software and functional parameters

Corresponding software package: Supports GT Designer 2 Version 2 software, providing rich graphic design tools and function block libraries, making it convenient for users to design graphics and develop programs.

Alarm function: Supports system alarm display, which can promptly remind operators of equipment operation status and abnormal situations.

Clock function: Built in clock function, supporting alarm display and time display, convenient for users to manage and record time.

Language support: Supports multi language switching to meet the usage needs of users from different countries and regions.
