MITSUBISHI GT1165-VNBA-C New and Original High quality

GT1165-VNBA-C

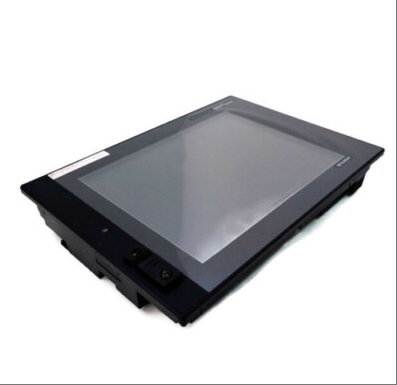

The GT1165-VNBA-C model is a high-performance and highly reliable industrial touch screen human-machine interface (HMI) product designed specifically for industrial automation scenarios. It adopts an 8.4-inch TFT color LCD display screen with a resolution of 640 × 480 pixels, which can present 256 colors of brilliant images, ensuring a clear and intuitive operating interface in complex industrial environments. This product supports AC100~240V wide voltage input, adapts to different power environments, has a built-in 3MB storage space to meet engineering data storage needs, and is equipped with a CF card slot for easy data expansion and backup. In terms of communication interface, GT1165-VNBA-C integrates RS-422, RS-232, and USB interfaces, supports high-speed data transmission, and can seamlessly connect with Mitsubishi PLC and other brands of FA equipment to achieve device monitoring and data interaction. Its design complies with industrial standards, with a protection level equivalent to IP67f (front part), dust and water resistance, and can operate stably in a wide temperature range of -25 ℃ to+70 ℃. Its lifespan is about 41000 hours (backlight lifespan is over 40000 hours), ensuring long-term reliable operation under harsh working conditions. In addition, the product supports GT Designer 2 Version 2 and above software, providing rich graphic design tools and functional block libraries, supporting multi language switching and script programming, which can significantly shorten the equipment development cycle and improve system integration efficiency. It is widely used in industrial fields such as packaging machinery, textile equipment, and automated production lines.

Technical specifcations for GT1165-VNBA-C

Display parameters

Display size: 8.4 inches, using TFT color LCD display screen, can provide clear and delicate image display effect.

Resolution: 640 × 480 pixels, meeting the requirements for image accuracy in the field of industrial automation.

Display color: 256 colors, can present rich color levels, enhance the visual experience of the operation interface.

Display size: 171 (W) × 128 (H) mm (horizontal display), viewing angle of 45 degrees left and right, 20 degrees up and down, contrast can be adjusted in 4 levels, LCD unit brightness is 150cd/m ², ensuring clear viewing of display content under different angles and lighting conditions.

Character display: When using a 16 dot matrix standard font, 40 words and 30 lines (full width) can be displayed; When using a 12 dot matrix standard font, it can display 53 words and 40 lines (full width), making it convenient for users to view and operate.

2、 Electrical parameters

Power supply voltage: AC100~240V， Adapt to power standards in different regions and have strong universality.

Power consumption and lifespan: The lifespan of the backlight is about 40000 hours or more, and the overall lifespan is about 41000 hours (operating at an ambient temperature of 25 ℃), reducing equipment maintenance and replacement costs. The off/screen protection time of the backlight can be set, and it has a backlight disconnection detection function, which improves the reliability of device operation.

3、 Storage parameters

Memory: Built in 3MB storage space for storing engineering data, meeting the data storage needs of general industrial automation projects.

Battery: Optional GT11-50BAT lithium battery, providing data backup function to prevent data loss due to power outage.

Extended Storage: Equipped with a CF card slot, it supports data transfer and storage, making it convenient for users to backup data and expand storage capacity.

4、 Interface parameters

RS-422 interface: Serial RS422 specification standard, 1 channel, transmission speed supports 115200/57600/38400/19200/9600/4800bps, connector shape is D-Sub 9-pin (female), mainly used for connecting machine communication.

RS-232 interface: Serial RS232 specification standard, 1 channel, transmission speed also supports 115200/57600/38400/19200/9600/4800bps, interface shape is D-Sub 9-pin (male), can be used to connect machine communication, barcode readers and personal computers, realize engineering data upload/download, OS installation and FA transparent transmission functions.

USB interface: Serial USB (full speed 12Mbps) standard, 1 channel, convenient for connecting with personal computers for engineering data upload/download, OS installation, and FA transparent transfer operations.

5、 Touch parameters

Touch key count: 1200/1 screen (matrix structure of 30 rows and 40 columns), capable of multi touch operation, meeting complex human-computer interaction needs.

Key size: minimum 16 x 16 dots (each key), easy to operate.

Simultaneously press points: up to 2 points, supporting simple multi-point gesture operations.
